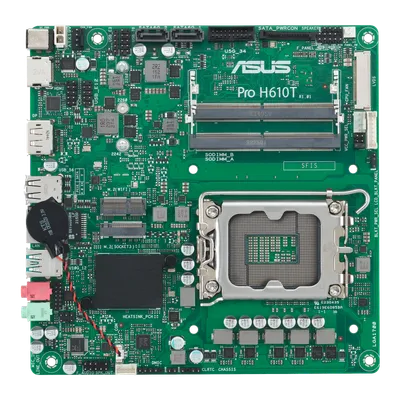

Pro H610T-CSM

Sockel

LGA 1700

Chipset

Intel H610

M.2-platser

1

Ethernet

1 Gigabit

Max minne

64 GB

SATA-portar

2

Ljudkodek

Realtek

Dimensioner

170 170 mm

Formfaktor

Mini-ITX

Minnestyp

DDR5

Displayutgångar

DisplayPort x1, HDMI x1

Max minneshastighet

5600 MHz

Övriga specifikationer

USB

Rear USB (Total 4 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 2.0 ports Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 header supports additional 1 USB 2.0 port

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Accessories

Cables 2 x SATA 6Gb/s cables 1 x SATA power cable Miscellaneous 2 x I/O Shields Documentation 1 x ACC Express Activation Key Card 1 x User guide

Manageability

WOL by PME, PXE

Operating System

Windows 11 64-bit, Windows 10 64-bit

Back Panel I/O Ports

2 x USB 3.2 Gen 2 ports 2 x USB 2.0 ports 1 x DisplayPort 1 x HDMI TM port 1 x Realtek 1Gb Ethernet port 2 x Audio jacks 1 x DC Power Connector (Support 19V)

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 2-pin +19V Power connector 1 x SATA power connector Storage related 1 x M.2 slot (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header supports additional 4 USB 2.0 ports 1 x USB 2.0 header supports additional 1 USB 2.0 ports AIO System related 1 x Stereo speaker connector 1 x DMIC header Flat panel display related 1 x Backlight inverter voltage selection header 1 x FPD brightness header 1 x Panel voltage selection header 1 x Panel off header Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 1 x COM Port header 1 x COM debug header 1 x Front Panel Audio header (AAFP) 1 x LVDS connector 1 x M.2 slot (Key E) 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
