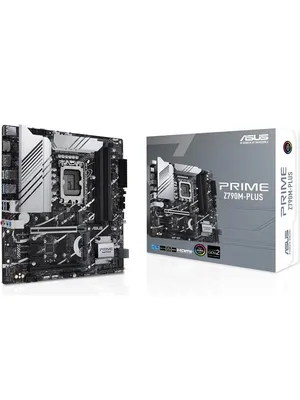

PRIME Z790M-PLUS

Sockel

LGA 1700

Chipset

Intel Z790

M.2-platser

3

Ethernet

1 Gigabit

Max minne

192 GB

PCIe-platser

1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 2x PCIe 4.0 x1

SATA-portar

4

Ljudkodek

Realtek

Dimensioner

244 244 mm

Formfaktor

Micro-ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

DisplayPort x1, HDMI x1

Max minneshastighet

7200 MHz

Övriga specifikationer

EAN

4711387025741

LAN

Gigabit Ethernet

SKU

90MB1E70-M0EAY0

Typ

HD-ljud (8 kanaler)

USB

Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports* * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

BIOS

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Ljud

HD-ljud (8 kanaler)

Wi-Fi

Nej

Art.nr

9576360

Socket

LGA1700

Teknik

DDR5

Chipset

Z790

BIOS-typ

AMI

Kretstyp

Intel Z790

Artikelnr

90MB1E70-M0EAY0

Modell-nr

90MB1E70-M0EAY0

RAM-stöd

4 DIMM-kortplatser - DDR5, icke ECC, on-die ECC, ej buffrad

Antal HDMI

1

Bussklocka

7200 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 6600 MHz (O.C.), 6400 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz, 5400 MHz, 5200 MHz, 5000 MHz, 4800 MHz

Egenskaper

Minnesarkitektur med dubbel kanal, Intel Extreme Memory Profiles (XMP)

Formfaktor

micro ATX

Accessories

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x Screw packages for M.2 SSD Documentation 1 x User guide

Gränssnitt

1 x DisplayPort 1 x HDMI 1 x USB-C 3.2 Gen2x2 1 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x ljudutgång - mini-jack 1 x mikrofon - mini-jack 1 x ljudingång - mini-jack 1 x LAN (Gigabit Ethernet)

HDMI-version

2.0

Produktlänk

https://www.asus.com/motherboards-components/motherboards/prime/prime-z790m-plus/

RAID-nivåer

0, 1, 5, 10

Manageability

WOL by PME, PXE

Minneskanaler

Dubbla kanaler

Lagringsportar

4 x SATA-600 (RAID), 3 x M.2

Typ av produkt

Moderkort - micro ATX

BIOS-egenskaper

UEFI BIOS, ASUS EZ Flash 3

Maximal storlek

128 GB

Processorsockel

LGA 1700

RAID-egenskaper

Intel Rapid Storage Technology

Strömkontakter

24-pin kontakt för huvudström, 8-pin ATX12V-kontakt, 4-pin ATX12V-kontakt

Max. RAM-storlek

128 GB

Operating System

Windows 11, Windows 10 64-bit

Processor-socket

1 x LGA1700-uttag

Special Features

ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers

FabrikatProduktnr

4711387025741

Hörlursutgångar

1

Serieport headers

1

Software Features

ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Produktbeskrivning

ASUS PRIME Z790M-PLUS - moderkort - micro ATX - LGA1700-uttag - Z790

USB 2.0 anslutning

2

Antal Displayportar

1

Antal minnesplatser

4

DisplayPort-version

1.4

Hårdvaruegenskaper

Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost-teknologi 2.0, ASUS OptiMem II, LANGuard, ASUS 5X Protection III, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS ProCool, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, överspänningsskydd, Q-DIMM, Q-LED Core, Q-Slot, VRM-kylelementskonstruktion, detekteringsteknik för ljudjack, automatisk enhets-igenkänning, ASUS EZ DIY, CrashFree BIOS 3, Preboot eXecution Environment (PXE), 10 + 1 DrMOS-effektsteg, ASUS Enhanced Memory Profile (AEMP) II, Water Pump Header

Interna gränssnitt

1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x ljud - header 1 x seriell - header 1 x SPDIF-ut - header 1 x SPI - header 1 x Thunderbolt - header

Lagringsgränssnitt

SATA-600 -kontakter: 4 x 7 pin Seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

Ljudutgångskanaler

7.1 kanaler

Medföljande kablar

2 x Seriell ATA-kabel

Minnets hastigheter

4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz

USB/FireWire-portar

1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB4 + 1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Viloläge/väckning

Wake on LAN (WOL), wake on PME

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI TM port 1 x Intel 1Gb Ethernet port 3 x Audio jacks

Maximalt internminne

128 GB

Moderkort formfaktor

micro ATX

Moderkortets chipset

Intel Z790

Nätverksgränssnitt

Gigabit Ethernet

Processortillverkare

Intel

Antal M.2 (M)-platser

3

Expansionskortplatser

1 x CPU 4 x DIMM 288-stift 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4-läge) 2 x PCIe 4.0 x1 2 x M.2 socket (2242/2260/2280 M.2 Key M-plats) 1 x M.2 socket (2260/2280 M.2 Key M-plats) 1 x M.2 socket (Key E)

Standarder som följs

HD-ljud

Antal Ethernet (RJ-45)

1

Inkluderade tillbehör

IO-skydd, 2 x M.2 SSD-skruvpaket

Kompatibla processorer

(stöder 12:e och 13:e generationens Intel Core / Pentium Gold / Celeron)

Minnestyper som stöds

DDR5-SDRAM

Internal I/O Connectors

Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin + 12V Power connector 1 x 4-pin + 12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header

Antalet COM-anslutningar

1

Medföljande programvara

Armoury Crate, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS CPU-Z, ASUS TurboV EVO Utility, Norton 360 Deluxe (60 dagars provperiod), PC Cleaner, WinRAR

Thunderbolt-anslutningar

1

Registrerad eller buffrad

Ej buffrad

Antal USB 2.0 anslutningar

4

Maximalt antal processorer

1

Stöder Ram Integrity Check

Icke ECC, on-die ECC

Typ av ethernet-gränssnitt

Gigabit Ethernet

Uttag för mikrofon/linje in

Ja

Antal anslutningar för fläktar

3

PCI Express x16 (Gen 4.x) platser

1

PCI Express x16 (Gen 5.x) platser

1

Antal USB 3.2 Gen 2x2 typ C-portar

1

USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar

2

Antal USB 3.2 Gen 1 (3.1 Gen 1)typ C-portar

1

Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar

4

Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar

1
