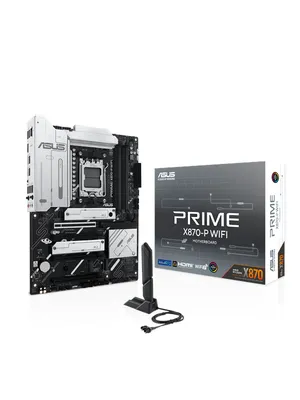

PRIME X870-P WIFI-

WiFi

WiFi 7

Sockel

AM5

Chipset

AMD X870

M.2-platser

4

Ethernet

2.5 Gigabit

Max minne

256 GB

PCIe-platser

1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 3x PCIe 4.0 x16 (x1)

SATA-portar

2

Ljudkodek

Realtek

Dimensioner

305 244 mm

Formfaktor

ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

HDMI x1, USB4 x2

Max minneshastighet

8000 MHz

Övriga specifikationer

EAN

4711387718148

Typ

Ljudkort

USB

Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Ljud

High Definition Audio (8-kanalig)

Modell

PRIME X870-P WIFI

Chipset

AMD X870

Lagring

M.2-uttag, Serial ATA-600 (RAID)

BIOS-typ

AMI

Kretstyp

AMD X870

Nätverk

Bluetooth 5.4, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)

Antal M.2

4 st

Egenskaper

Minnesarkitektur med dubbel kanal, AMD EXPO-teknik

Formfaktor

ATX

Produkttyp

Moderkort

RAID-stöd

Ja

Accessories

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 2 x Screw packages for M.2 SSD Documentation 1 x Quick start guide

Gränssnitt

2 x Thunderbolt 4/DisplayPort/USB4, 1 x HDMI, 3 x USB 3.2 Gen 1, 1 x ljudutgång - mini-jack, 1 x mikrofon - mini-jack, 4 x USB 2.0, 1 x USB 3.2 Gen 2, 1 x LAN (2.5Gigabit Ethernet), 1 x ljudingång - mini-jack

Produktlinje

ASUS

USB/FireWire

USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen2

Manageability

WOL by PME, PXE

Lagringsportar

2 x SATA-600 (RAID), 4 x M.2

News & Updates

Socket AM5, Please visit our GLOBAL website to check and download the latest updates.

BIOS-egenskaper

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ-läge

Internminnestyp

DDR5

RAID-egenskaper

AMD RAID Xpert2-teknik

RAM-kortplatser

4 DIMM-kortplatser

Strömkontakter

24-pin kontakt för huvudström, 2 x 8-stifts ATX12V-kontakter

Operating System

Windows 11

Processor-socket

Socket AM5

Special Features

ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable Gen 2 headers

Software Features

ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey

Datalänkprotokoll

IEEE 802.11g, Bluetooth 5.4, IEEE 802.11ax (Wi-Fi 6E), Gigabit Ethernet, IEEE 802.11ac, 2.5 Gigabit Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11be (Wi-Fi 7), IEEE 802.11b, IEEE 802.11n, Ethernet

Hårdvaruegenskaper

CrashFree BIOS 3, 8 Layer PCB, Preboot eXecution Environment (PXE), DIY Friendly Design, M.2 Q-Latch, ASUS Q-Design, Q-LED Core, ASUS överspänningsskydd, BIOS FlashBack LED, Q-DIMM, ASUS EZ DIY, Förmonterat I/O-skydd, ASUS DIGI+ VRM, ASUS SafeSlot, ASUS Enhanced Memory Profile (AEMP), AI Cooling II, BIOS FlashBack-knapp, Chipset kylelement, ASUS Stainless Steel Back I/O, 14+2+1 Phase Power Design, Q-Dashboard, ASUS 5X Protection III, ASUS ProCool, M.2 kylfläns, VRM-kylelementskonstruktion, PCIe Slot Q-Release, ASUS Aura Sync, LANGuard, Q-Slot

Interna gränssnitt

1 x ljud - header, 4 x USB 2.0 - header, 1 x SPI - header, 1 x USB-C 3.2 Gen 2 - header, 1 x seriell - header, 2 x USB 3.2 Gen 1 - header

Lagringsgränssnitt

SATA-600 -kontakter: 2 x 7 pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 3.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 5.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

Medföljande kablar

2 x Seriell ATA-kabel

Trådlöst nätverk

Ja

Viloläge/väckning

Wake on PME, Wake on LAN (WOL)

Back Panel I/O Ports

2 x USB4 (40Gbps) ports (2 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button

Expansionskortplatser

4 x DIMM 288-stift, 1 x M.2 socket (2242/2260/2280 M.2 Key M-plats), 3 x M.2 socket (2280 M.2, nyckel M-kortplats), 1 x CPU, 3 x PCIe 4.0 x16 (x1-läge), 1 x PCIe 5.0 x16

RAM-teknik som stöds

DDR5 SDRAM

Standarder som följs

DisplayPort 1.4a

Inkluderade tillbehör

2 x M.2 skruvpaket, ASUS Wi-Fi Q-antenna, 1 st. M.2-gummipaket

Programvara inkluderad

Norton 360 Deluxe (60 dagars provperiod), ASUS Fan Xpert 4, TurboV Core, Armoury Crate, WinRAR (40 days trial), ASUS CPU-Z, ASUS DriverHub, ASUS AURA Creator

Internal I/O Connectors

Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header

RAM-hastighet som stöds

4000 MHz (O.C.)

Stöder Ram Integrity Check

Icke ECC, ECC, On-die ECC

Kompatibla processorkommentarer

Stöder Ryzen 7000/8000/9000-serien

Producentens garanti (månader)

24

USB/FireWire-portkonfiguration (aktiv)

2 x USB4 + 1 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 4 x USB 2.0

USB/FireWire-portkonfiguration (sidhuvud)

1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0

RAM som stöds (registrerad eller buffrad)

Ej buffrad
