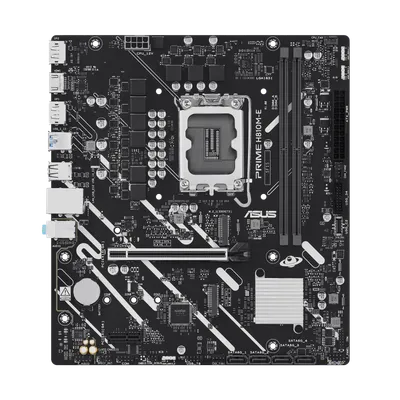

PRIME H810M-E-CSM

Sockel

LGA 1851

Chipset

Intel H810

M.2-platser

2

Ethernet

1 Gigabit

Max minne

128 GB

PCIe-platser

1x PCIe 4.0 x16, 1x PCIe 4.0 x1

SATA-portar

4

Ljudkodek

Realtek

Dimensioner

244 222 mm

Formfaktor

Micro-ATX

Minnestyp

DDR5

Minnesplatser

2

Displayutgångar

DisplayPort x2, HDMI x1

Max minneshastighet

7200 MHz

Övriga specifikationer

USB

Rear USB (Total 6 ports) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps connector (supports USB Type-C)* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A ** USB_E1 port, USB_E2 port and USB_E3 port share the bandwidth.

BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Accessories

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x M.2 anchor package Documentation 1 x Quick start guide 1 x ACC Express activation key card

Manageability

WOL by PME, PXE

News & Updates

Please see the updated OS support requirements for the Intel Core Ultra 200S series below: •Intel Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility., Please visit our GLOBAL website to check and download the latest updates.

Operating System

Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Special Features

ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Dual DIMM clips Aura Sync - Addressable RGB Gen 2 headers

Software Features

ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ ASUS DriverHub - ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey DIMM FIT Pro * For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.

Back Panel I/O Ports

2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks

Internal I/O Connectors

Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header
