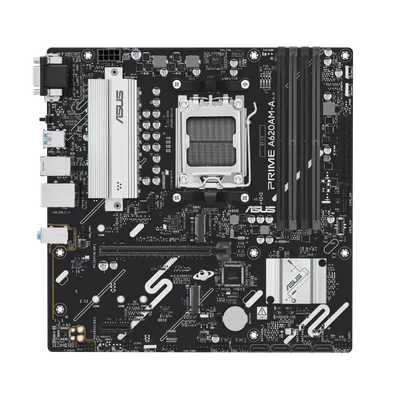

PRIME A620AM-A-CSM

Sockel

AM5

Chipset

AMD A620A

M.2-platser

2

Ethernet

1 Gigabit

Max minne

256 GB

PCIe-platser

1x PCIe 4.0 x16, 1x PCIe 3.0 x1

SATA-portar

4

Ljudkodek

Realtek

Dimensioner

244 244 mm

Formfaktor

Micro-ATX

Minnestyp

DDR5

Övriga specifikationer

USB

Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A.

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Accessories

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x Screw package for M.2 SSD Documentation 1 x ACC Express activation key card 1 x Quick start guide

RAID Support

AMD RAIDXpert2 Technology* Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 * Specifications vary by CPU types.

Manageability

WOL by PME, PXE

News & Updates

Socket AM5, Please visit our GLOBAL website to check and download the latest updates.

Operating System

Windows 11, Windows 10 64-bit

Special Features

ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED Aura Sync - Addressable RGB Gen 2 headers
