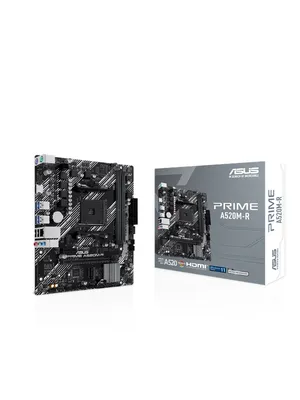

PRIME A520M-R

Sockel

AM4

Chipset

AMD A520

M.2-platser

1

Ethernet

1 Gigabit

Max minne

64 GB

PCIe-platser

1x PCIe 3.0 x16, 1x PCIe 3.0 x1

SATA-portar

4

Ljudkodek

Realtek

Dimensioner

236 193 mm

Formfaktor

Micro-ATX

Minnestyp

DDR4

Minnesplatser

2

Displayutgångar

HDMI x1

Max minneshastighet

5100 MHz

Övriga specifikationer

SKU

90MB1H60-M0EAY0

USB

Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Djup

193 mm

Ljud

HD Audio (8-kanaler)

Bredd

236 mm

Wi-Fi

Nej

Socket

AM4

Chipset

AMD A520

Lagring

1 x M.2, 4 x SATA 6 Gb/s (RAID)

Max RAM

64 GB

Nätverk

Gigabit Ethernet

Artikelnr

90MB1H60-M0EAY0

Minnestyp

DDR4, 2 DIMM, ECC, ej buffrat

Antal HDMI

1

Antal PS/2

2

RAID-stöd

Ja

Accessories

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x M.2 anchor Documentation 1 x Quick start guide

Kategorivag

Datorkomponenter > Moderkort > AMD Socket AM4

HDMI-version

2.1

Produktlänk

https://www.asus.com/motherboards-components/motherboards/prime/prime-a520m-r/

RAID-nivåer

0, 1, 10

Antal USB 2.0

2

Manageability

WOL by PME, PXE

News & Updates

Socket AM4

TPM-anslutning

Ja

Processorsockel

AM4

Operating System

Windows 11, Windows 10 64-bit

Special Features

ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design

Hörlursutgångar

1

Minnesplatser typ

DIMM

Software Features

ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert - EZ update - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Moderkort kretstyp

AMD A520

Stöds minnestyper

DDR5-SDRAM

USB 2.0 anslutning

2

Antal minnesplatser

2

Ljudutgångskanaler

7.1 kanaler

Minneskanaler stöd

Dubbla kanaler

Minnets hastigheter

2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4333,4400,4466,4600,4666,4866,5100 MHz

Back Panel I/O Ports

4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port

Maximalt internminne

64 GB

Moderkort formfaktor

micro ATX

Antal M.2 (M)-platser

1

Antal Ethernet (RJ-45)

1

Kompatibla processorer

AMD Ryzen 3000 / 4000 G / 5000 / 5000 G-serien

Internal I/O Connectors

Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage Related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header

Antal SATA III kontakter

4

Antalet COM-anslutningar

1

Moderkort chipset familj

AMD

Typ av ethernet-gränssnitt

Gigabit Ethernet

Antal anslutningar för fläktar

1

Stöd för parallellprocessteknik

Stöds inte

Lagringsenhetsgränssnitt som stöds

M.2, SATA III

PCI Express x1 (Gen 3.x)-kortplatser

1

Minnesklockhastighet som stöds (max)

5100 MHz

PCI Express x16 (Gen 3.x)-kortplatser

1

USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar

1

USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar

0

Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar

4
