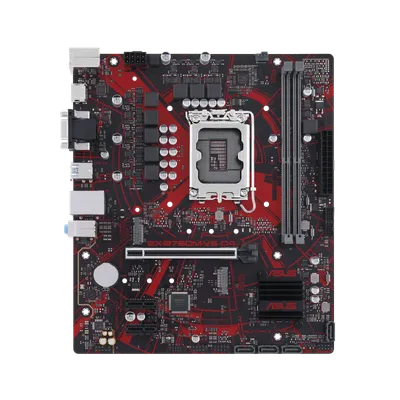

EX-B760M-V5 D4

Sockel

LGA 1700

Chipset

Intel B760

M.2-platser

2

Ethernet

2.5 Gigabit

Max minne

64 GB

PCIe-platser

1x PCIe 4.0 x16, 2x PCIe 4.0 x1

SATA-portar

4

Ljudkodek

Realtek

Dimensioner

244 211 mm

Formfaktor

Micro-ATX

Minnestyp

DDR4

Minnesplatser

2

Displayutgångar

VGA x1, HDMI x1

Max minneshastighet

5333 MHz

Övriga specifikationer

USB

Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Accessories

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 Anchors Documentation 1 x User guide

Manageability

WOL by PME, PXE

Operating System

Windows 11, Windows 10 64-bit

Special Features

ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS EZ DIY - ProCool Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Luminous anti-moisture coating - USBGuard

Back Panel I/O Ports

4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI port 3 x Audio jacks 1 x Realtek 2.5Gb Ethernet port 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header
