WiFi

WiFi 6

5 GHz

Ja

6 GHz

Nej

Ethernet

1 Gbps

2,4 GHz

Nej

Mesh-stöd

AiMesh

Övriga specifikationer

LAN

Ja, IGMP Snooping, IPTV, Ja, • Maximum Manually Assign IP Address Rule : Max 64 rules, Wake on LAN (WOL)

VPN

Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, Dual WAN, Ja, Ja, Ja, Ja, DMZ, DDNS, PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough

AiMesh

AiMesh, Primary AiMesh router, AiMesh node

Memory

256 MB Flash / 512 MB RAM

Remark

Content may vary in different regions and packages.

Antenna

Internal antenna x 4

Buttons

WPS/PLC Combo Button, Reset Button

Security

WPA3-Personal, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPS support, WPS, Let's Encrypt, Ja, Firewall, • Maximum Firewall Keyword Filter : Max 64 rules, • Maximum Firewall Network Service Filter : Max 32 rules, • Maximum Firewall URL Filter : Max 64 rules

Wireless

UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : Max 64 rules, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming

I/O Ports

RJ45 for Gigabit BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 2 / USB 3.2 Gen 1 x 1 / AC Power Jack with PLC x 1

Processor

64bit 1.2 GHz quad-core processor

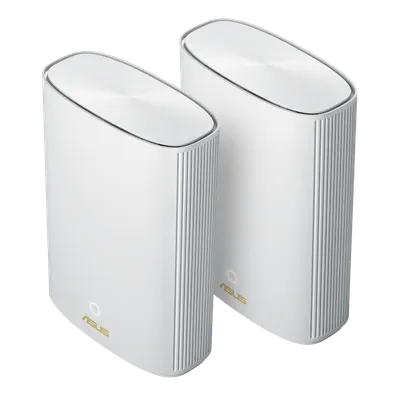

Model Name

XP4(2-PK) / XP4(1-PK)

Router APP

ASUS Router APP

AiProtection

AiProtection Pro, Ja, Malicious site blocking, Two-Way IPS, Infected Device Prevention and Blocking

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access) / Beamforming: standard-based and universal / 1024-QAM high data rate / 20/40/80 MHz bandwidth

Power Supply

AC Input : 110V~240V(50~60Hz)

Guest Network

Guest Network, • Maximum Guest Network Rule : Max 6 rules, Ja, Max 6 rules

LED Indicator

Power & Status Combo LED x 1

Administration

Ja, Diagnosis Tools, Feedback System, System Log

Operating Mode

Wireless router mode,Range extender mode,Access point mode,Media bridge mode

WiFi Data Rate

WiFi 6 (802.11ax) (5GHz) : upp till 1201 Mbps / WiFi 6 (802.11ax) (2.4GHz) : upp till 574 Mbps / WiFi 5 (802.11ac) : upp till 867 Mbps / WiFi 4 (802.11n) TurboQAM : upp till 400 Mbps / WiFi 4 (802.11n) : upp till 300 Mbps / 802.11g : upp till 54 Mbps / 802.11b : upp till 11 Mbps / 802.11a : upp till 54 Mbps, HomePlug AV2 1300Mbps / HomePlug AV2 1300Mbps

Package Content

‧Router (XP4) / ‧RJ45 Ethernet cable / ‧Power core / ‧Quick start guide / ‧Warranty Card

Product Segment

AX1800 ultimat AX-prestanda : 1201 Mbit/s+ 574 Mbit/s / AV1300 HomePlug AV2 MIMO : 1300 Mbps

Traffic Control

Adaptive QoS, Ja, Ja, -- Maximum Bandwidth Limiter Rule : Max 32 rules, Traditional QoS, • Maximum Traditional QoS Rule : Max 32 rules, Traffic Monitor, Ja, Ja, Ja, Traffic Analyzer, Ja

USB application

Ja, File System : FS_Tuxera_HFS+, FS_Tuxera_NTFS, FS_Tuxera_vFAT, FS_ext2, FS_ext3, FS_ext4, Ja, Ja, Ja, Ja, Ja, Ja, Ja, Ja, Ja

Network Standard

IEEE 802.3z / IEEE 802.3ab / IEEE 1905.1 / IEEE 1901 / HomePlug AV2 MIMO / IPv6 / IPv4 / WiFi 6 (802.11ax) / WiFi 5 (802.11ac) / WiFi 4 (802.11n) / IEEE 802.11g / IEEE 802.11b / IEEE 802.11a

Parental Control

Parental Control, Ja, • Maximum Parental Control Profile : Max 16 rules, • Maximum Parental Control Content Filter Rule : Max 16 rules

Product Dimensions

148x71x208 mm / 5.04 x 2.79 x 8.19 In

Product Weight (g)

665g / 1.47lb

Operating Frequency

2.4G Hz / 5 GHz
