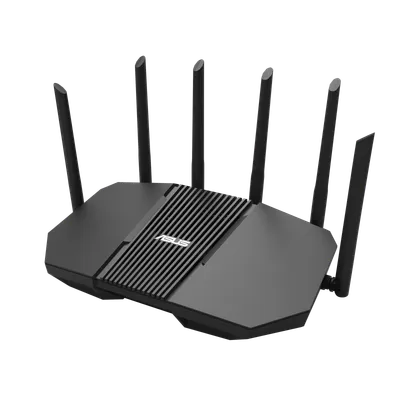

ASUS RT-BE90U

WiFi

WiFi 7

5 GHz

Ja

6 GHz

Ja

Ethernet

2.5 Gbps

2,4 GHz

Ja

Mesh-stöd

AiMesh

Övriga specifikationer

LAN

Ja, Ja, Ja, • Maximum Manually Assign IP Address Rule : 64, Ja

VPN

Instant Guard, Ja, Ja, Ja, VPN Client WireGuard, Ja, Ja, Ja, VPN Server WireGuard, VPN Fusion, Support Surfshark, Support Nord VPN

WAN

• IPSec / • Static IP / • Automatic IP / • L2TP / • PPTP / • PPPoE / Internet Connection Type :, Nej, Nej, 4G / 5G Auto Mobile Tethering, Ja, • Maximum Port Forwarding Rule : 64, Ja, • Maximum Port Triggering Rule : 32, Ja, Ja, • PPPoE Relay / • SIP Pass-Through / • H.323 Pass-Through / • RTSP Pass-Through / • IPSec Pass-Through / • L2TP Pass-Through / • PPTP Pass-Through / NAT Passthrough :

AiMesh

Ja, Ja, Ja

Memory

256 MB Flash and 1 GB RAM

Slogan

BE9400 Tri-band WiFi 7 (802.11be) AiMesh Extendable Router, 320MHz, 4K-QAM, MLO, Quad 2.5G ports, Commercial-Grade Network Security, Smart Home Master

Antenna

External antenna x 6

Buttons

WPS Button, Reset Button, Power Button

Security

AiProtection Pro, VPN, WPA/WPA2/WPA3 Personal / WPA/WPA2/WPA3 Enterprise / Open System & OWE, Ja, Ja, DNS-over-TLS, Ja, Security Scan, Ja, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

Wireless

MU-MIMO, Ja, Ja, • Maximum MAC Filters : 64, Ja, Ja, Ja, Ja

I/O Ports

1 x 2.5 Gbps for WAN / 3 x 2.5 Gbps for LAN / USB 3.2 Gen1 x1

Processor

1.5GHz quad-core processor

AiProtection

AiProtection, Ja, Ja

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access) / Beamforming: standard-based and universal / 4096-QAM high data rate / 20/40/80/160/320 MHz bandwidth

Power Supply

AC Input : 110V~240V(50~60Hz) / DC Output : 12 V with max. 2.5 A current

Guest Network

Ja, Support Guest Network, • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 3, Guest Network Pro Encryption : Open system, WPA/WPA2/WPA3-Personal

LED Indicator

WAN(Internet) x1 / 6GHz x 1 / 5GHz x 1 / 2.4GHz x1 / Power x1

Administration

Ja, Ja, Ja, Ja, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update

Operating Mode

Repeater Mode / Media Bridge Mode / Access Point Mode / AiMesh Node Mode / Wireless Router Mode

User Interface

WEB: ASUSWRT, APP: ASUS Router APP

WiFi Data Rate

WiFi 7 (802.11be) (6GHz): up to 5764 Mbps / WiFi 7 (802.11be) (5GHz): up to 2882 Mbps / WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps

Package Content

RT-BE90U Tri Band WiFi 7 Router / RJ-45 cable / Power adapter / Quick Start Guide / Warranty card

Product Segment

BE9400 ultimate BE performance : 688+2882+5764 Mbps

Traffic Control

Ja, Ja, Ja, -- Maximum Bandwidth Limiter Rule : 32, Ja, Ja, Ja, Ja, Ja, Ja, • Traffic Analysis Period : Daily, Weekly, Monthly, Ja

USB application

4G / 5G Auto Mobile Tethering, • FAT32 / • ext4 / • ext3 / • ext2 / • vFAT / • NTFS / • HFS+ / File System :, Ja, Ja, Ja, Nej, Ja, Nej, Ja

Network Standard

IP v 6 / IP v 4 / WiFi 7 (802.11be) / WiFi 6E (802.11ax) / IEEE 802.11ax / IEEE 802.11ac / IEEE 802.11n / IEEE 802.11g / IEEE 802.11b / IEEE 802.11a

Parental Control

Web & Apps Filters, Time Scheduling, Safe Browsing, Ja, • Maximum Parental Control Profile : 64

Product Dimensions

320 x 180 x 191 mm

Product Weight (g)

761 g

Transmit / Receive

6GHz 2x2 / 5 GHz 2 x 2 / 2,4 GHz 2 x 2

Operating Frequency

6 GHz / 5 GHz / 2.4 GHz
