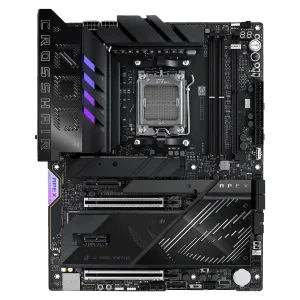

ROG CROSSHAIR X870E APEX

WiFi

WiFi 7

Sockel

AM5

Chipset

AMD X870E

M.2-platser

5

Ethernet

5 Gigabit

Max minne

128 GB

PCIe-platser

2x PCIe 5.0 x16, 2x PCIe 4.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x1

SATA-portar

4

Ljudkodek

SupremeFX ALC4080

Dimensioner

305 244 mm

Formfaktor

ATX

Minnestyp

DDR5

Minnesplatser

2

Displayutgångar

USB4 x2

Max minneshastighet

8200 MHz

Övriga specifikationer

EAN

4711387890240

Typ

Ljudkort

USB

Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C) 2 x USB 5Gbps ports (2 x Type-A) Front USB (Total 10 ports) 1 x USB 20Gbps (supports USB Type-C with up to 60W PD/QC4+)* 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A *USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

BIOS

2 x 256 Mb Flash ROM, UEFI AMI BIOS

Ljud

High Definition Audio (8-kanalig)

Modell

ROG CROSSHAIR X870E APEX

Chipset

AMD X870E

Lagring

Serial ATA-600 (RAID), M.2-uttag

BIOS-typ

AMI

Kretstyp

AMD X870E

Nätverk

Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 5 Gigabit Ethernet

Antal M.2

5 st

Egenskaper

Minnesarkitektur med dubbel kanal, AMD EXPO-teknik

Formfaktor

ATX

Produkttyp

Moderkort

RAID-stöd

Ja

Accessories

ROG DIMM.2 with Heatsink 1 x ROG DIMM.2 with heatsink 1 x M.2 pad for ROG DIMM.2 2 x M.2 screw package for ROG DIMM.2 Additional Cooling Kit 1 x ROG Memory Fan Kit Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 3 x M.2 Q-Slide package 3 x M.2 rubber package 1 x ROG stickers 1 x ROG thank you card 1 x ROG Bottle Opener Installation Media 1 x USB drive with utilities and drivers Documentation 1 x Quick start guide

Audio Codec

SupremeFX (ALC4080)

Gränssnitt

1 x SPDIF-utgång, 1 x LAN (5Gigabit Ethernet), 2 x USB4, 5 x USB 3.2 Gen 2, 1 x USB-C 3.2 Gen 2, PS/2-tangentbord/mus, 1 x ljudutgång, 2 x USB 3.2 Gen 1, 1 x mikrofon

Produktlinje

ASUS

RAID Support

AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 * Specifications vary by CPU types.

USB/FireWire

USB4, USB-C 3.2 Gen2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2

Manageability

WOL by PME

Lagringsportar

4 x SATA-600 (RAID), 5 x M.2

News & Updates

Socket AM5

BIOS-egenskaper

ASUS UEFI BIOS EZ-läge, UEFI BIOS, ASUS EZ Flash 3

Internminnestyp

DDR5

RAID-egenskaper

AMD RAID Xpert2-teknik

RAM-kortplatser

2 DIMM-kortplatser

Strömkontakter

8-stifts PCI Express-strömkontakt, 24-pin kontakt för huvudström, 2 x 8-stifts ATX12V-kontakter

Operating System

Windows 11 (22H2 & later)

Processor-socket

Socket AM5

Special Features

Extreme OC Kit - FlexKey button - LN2 Mode - ProbeIt - ReTry button - Safe boot button - Start button - Slow Mode Extreme Engine Digi+ - SMD Capacitor - MicroFine alloy choke ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Connector - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design - Metal backplate ASUS EZ DIY - Backplate - BIOS FlashBack button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 header(s) Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 60W fast charging and USB Wattage Watcher* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with PD3.0 and PPS * To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.

Software Features

ROG Exclusive Software - ROG CPU-Z - Dolby Atmos - Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync -Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO ASUS AI Advisor ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey

Datalänkprotokoll

IEEE 802.11n, IEEE 802.11be (Wi-Fi 7), IEEE 802.11a, IEEE 802.11b, Bluetooth 5.4, 2.5 Gigabit Ethernet, Fast Ethernet, Ethernet, 5 Gigabit Ethernet, IEEE 802.11g, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11ac

Hårdvaruegenskaper

ASUS Q-Connector, AMD Precision Boost Overdrive (PBO), MicroFine Alloy Chokes, ASUS Aura Sync, Core Flex-teknik, BIOS FlashBack-knapp, ASUS ProCool II, 18+2+2-fasad strömkonstruktion, M.2 Q-Release, AI Cooling II, ASUS Extreme OC Kit, Q-Release Slim, 10K Black Metallic Capacitors, PCIe Slot Q-Release, FlexKey-knapp, M.2 Q-Latch, VRM-kylelementskonstruktion, AI Nätverk II, ASUS Extreme Engine Digi+, ASUS Q-Design, ASUS EZ DIY, Q-Antenna, Preboot eXecution Environment (PXE), M.2 kylfläns, ASUS Enhanced Memory Profile (AEMP), Q-Dashboard, M.2 bakre kylelementsplåt, Q-LED, Bakre metallplåt, ASUS SafeSlot, Q-Slot, Förmonterat I/O-skydd, Chipset kylelement, ASUS SafeDIMM, M.2 Q-Slide, Quick Charge 4+, AI Överklockning, CrashFree BIOS 3, Startknapp, Polymo Lighting II, Q-Code, Clear CMOS-knapp

Interna gränssnitt

4 x USB 3.2 Gen 1 - header, 2 x USB-C 3.2 Gen 2x2 - header, 1 x ljud - header, 4 x USB 2.0 - header

Lagringsgränssnitt

PCIe 5.0 -kontakter: 3 x M.2, SATA-600 -kontakter: 4 x 7 pin Seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -kontakter: 2 x M.2

Trådlöst nätverk

Ja

Viloläge/väckning

Wake on PME, Wake on LAN (WOL)

Back Panel I/O Ports

2 x USB4 (40Gbps) ports (2 x USB Type-C) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C) 2 x USB 5Gbps ports (2 x Type-A) 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet port 1 x PS/2 keyboard/mouse combo port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button

Expansionskortplatser

2 x DIMM 288-stift, 2 x PCIe 5.0 x16, 2 x M.2 socket (22.110 M.2, nyckel M-kortplats), 1 x PCIe 3.0 x1, 1 x PCIe 4.0 x4, 1 x CPU, 3 x M.2 socket (2280 M.2, nyckel M-kortplats)

RAM-teknik som stöds

DDR5 SDRAM

Standarder som följs

HD-ljud

Inkluderade tillbehör

2 ROG DIMM.2 M.2-skruvpaket, ROG tackkort, ROG flasköppnare, 3 x M.2 Q-Slide, 3 st. M.2 gummipaket, ROG DIMM.2 med kylelement, ROG-dekaler, Wi-Fi-antenn, Q-Connector, USB-enhet, ROG minnesfläktkit, ROG DIMM.2 M.2-platta

Kompatibla processorer

Ryzen

Programvara inkluderad

ASUS Fan Xpert 4, TurboV Core, WinRAR (40 days trial), ASUS GlideX, ASUS AURA Creator, ASUS DriverHub, ROG GameFirst Utility, Drivrutiner och hjälpprogram, HWiNFO, USB Wattage Watcher, ROG CPU-Z, AIDA64 Extreme (1 års licens), Adobe Creative Cloud (kostnadsfri provperiod), Armoury Crate

Internal I/O Connectors

Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers 2 x 4-pin Full Speed Fan headers 1 x W_PUMP+ header 1 x Extra Flow Fan header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 20Gbps connectors (support USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x 80 Light Bar jumper 3 x Addressable Gen2 headers 1 x Alteration PCIe mode switch 2 x BCLK button 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x LN2 Mode jumper 1 x Pause switch 12 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switches 1 x RSVD_4 header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header

RAM-hastighet som stöds

4800 MHz (O.C.), 4000 MHz (O.C.), 4100 Mhz (O.C)

Stöder Ram Integrity Check

ECC, Icke ECC, On-die ECC

Kompatibla processorkommentarer

Stöder Ryzen 7000/8000/9000-serien

Producentens garanti (månader)

36

USB/FireWire-portkonfiguration (aktiv)

2 x USB4 + 1 x USB-C 3.2 Gen 2 + 5 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1

USB/FireWire-portkonfiguration (sidhuvud)

2 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0

RAM som stöds (registrerad eller buffrad)

Ej buffrad
