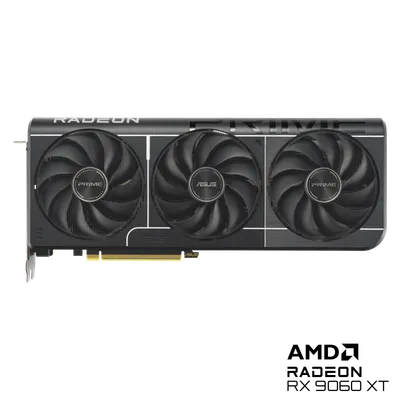

ASUS Prime Radeon™ RX 9060 XT 8GB GDDR6 OC Edition

TDP

550 W

Bredd

126 mm

Höjd

50 mm

Längd

304 mm

OpenGL

4.6

Minnesbuss

128-bit

Boost-klocka

3330 MHz

Minne

8 GB

Minnestyp

GDDR6

Max antal skärmar

3

Minneshastighet

20 Gbps

Lanseringsår

2025

Buss

PCIe 5.0 x16

Max upplösning

Digital Max Resolution 7680 x 4320

Displayutgångar

Yes x 1 (Native HDMI 2.1b), Yes x 2 (Native DisplayPort 2.1a), Ja(2.3)

Strömanslutningar

1 x 8-stift

Övriga specifikationer

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products. * ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. * ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

Slot

2.5 Slot

Software

ASUS GPU Tweak III & Drivers: please download all software from the support site.

Accessories

1 x Thank you card 1 x Speedsetup Manual

Graphic Engine

AMD Radeon RX 9060 XT

Stream Processors

2048

NVlink/ Crossfire Support

Nej
