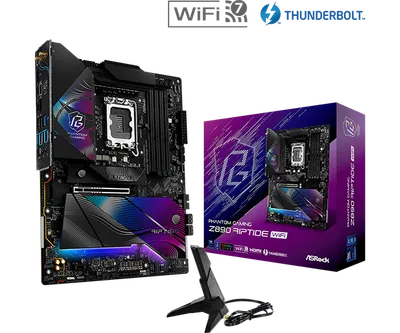

Z890 Riptide WiFi

WiFi

WiFi 7

Sockel

LGA 1851

Chipset

Intel Z890

M.2-platser

5

Ethernet

2.5 Gigabit

Max minne

256 GB

PCIe-platser

CPU: / 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset: / 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* / 1 x PCIe 4.0 x1 Slot (PCIE3)* / 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)*PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.Supports NVMe SSD as boot disks

SATA-portar

4

Ljudkodek

Realtek ALC1220

Dimensioner

305 244 mm

Formfaktor

ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

Intel Xe LPG Graphics Architecture / 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz / 2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz** Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Supports two 4K displays or one 8K display Only the CPU's embedded graphics can be displayed through Thunderbolt ports. If you want to display to a Thunderbolt monitor, please use CPU models with embedded graphics.

Max minneshastighet

9466 MHz

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

USB

CPU: / 2 x Thunderbolt 4/USB4 Type-C (Rear)Chipset: / 1 x USB 3.2 Gen2x2 Type-C (Front) / 2 x USB 3.2 Gen2 Type-A (Rear) / 8 x USB 3.2 Gen1 (4 Rear, 4 Front) / 6 x USB 2.0 (2 Rear, 4 Front)*All USB ports support ESD Protection

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices / Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Connector

1 x Thermistor Cable Header / 1 x SPI TPM Header / 1 x Power LED and Speaker Header / 1 x RGB LED Header* / 3 x Addressable LED Headers** / 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** / 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** / 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** / 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** / 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) / 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) / 1 x Front Panel Audio Connector / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) / 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) / 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)*Supports in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***CPU_FAN1 supports the fan power up to 1A (12W).CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP support the fan power up to 3A (36W).CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

Accessories

2 x SATA Data Cables / 1 x ASRock WiFi 2.4/5/6 GHz Antenna / 1 x ARGB Splitter Cable / 1 x Thermistor Cable
