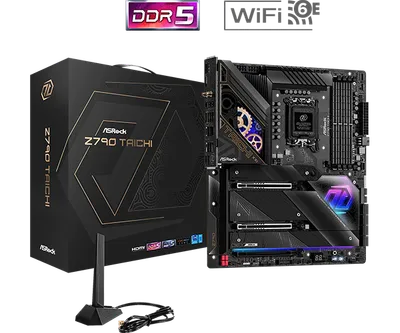

Z790 Taichi

WiFi

WiFi 6

Sockel

LGA 1700

Chipset

Intel Z790

M.2-platser

5

Ethernet

2.5 Gigabit

Max minne

256 GB

PCIe-platser

CPU: / 2 x PCIe 5.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE2))*Chipset: / 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* / 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) / Supports AMD CrossFire / 15μ Gold Contact in VGA PCIe Slots (PCIE1 and PCIE2)* If M2_1 is occupied, PCIE1 will downgrade to x8 mode.If PCIE2 is occupied, M2_1 will be disabled.If PCIE3 is occupied, SATA3_0~3 will be disabled.Supports NVMe SSD as boot disks

SATA-portar

8

Ljudkodek

Realtek ALC4082

Dimensioner

305 267 mm

Formfaktor

EATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

Intel Xe Graphics Architecture (Gen 12) / 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz / 2 x Intel Thunderbolt 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz**Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**Supports two 4K displays or one 8K displayOnly the CPU's embedded graphics can be displayed through Thunderbolt ports. If you want to display to a Thunderbolt monitor, please use CPU models with embedded graphics.

Max minneshastighet

7200 MHz

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit*Windows 10 only supports version 21H2 or later

USB

2 x USB4 Thunderbolt 4 Type-C (Rear) / 1 x USB 3.2 Gen2x2 Type-C (Front) / 2 x USB 3.2 Gen2 Type-A (Rear) / 10 x USB 3.2 Gen1 (6 Rear, 4 Front) / 6 x USB 2.0 (2 Rear, 4 Front)*All USB ports support ESD Protection

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices / Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

Connector

1 x SPI TPM Header / 1 x Power LED and Speaker Header / 1 x RGB LED Header* / 3 x Addressable LED Headers** / 1 x CPU Fan Connector (4-pin)*** / 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** / 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** / 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) / 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) / 1 x 12V 6 pin Power Connector for Fast Charging (Hi-Density Power Connector) / 1 x Front Panel Audio Connector / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) / 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) / 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)****** / 1 x Clear CMOS Button / 1 x Dr. Debug with LED / 1 x Power Button with LED / 1 x Reset Button with LED*Supports in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***CPU_FAN1 supports the fan power up to 1A (12W).****CPU_FAN2/WP_3A supports the fan power up to 3A (36W).*****CHA_FAN1~6/WP support the fan power up to 2A (24W).*****CPU_FAN2/WP_3A and CHA_FAN1~6/WP can auto detect if 3-pin or 4-pin fan is in use.****** Supports USB PD 3.0 up to 20V@3A (60W) fast charging when you install PSU's Power Cable to the 12V 6 pin Power Connector. If the 12V 6 pin Power Connector is not plugged, this header supports USB PD 3.0 up to 9V@3A (27W) fast charging.
