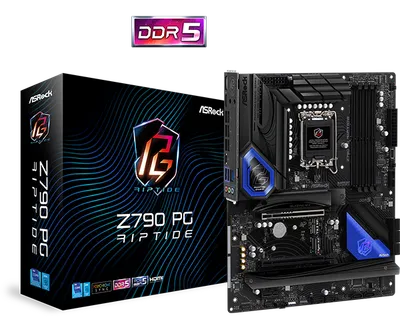

Z790 PG Riptide

Sockel

LGA 1700

Chipset

Intel Z790

M.2-platser

5

Ethernet

2.5 Gigabit

Max minne

256 GB

PCIe-platser

CPU: / 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset: / 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* / 1 x PCIe 3.0 x1 Slot (PCIE3)* / 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) / Supports AMD CrossFire*If M2_5 is occupied, PCIE1 will downgrade to x8 mode.Supports NVMe SSD as boot disks

SATA-portar

8

Ljudkodek

Realtek ALC897

Dimensioner

305 244 mm

Formfaktor

ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

Intel Xe Graphics Architecture (Gen 12) / 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz / 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Max minneshastighet

7200 MHz

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit*Windows 10 only supports version 21H2 or later

USB

1 x USB 3.2 Gen2x2 Type-C (Front) / 2 x USB 3.2 Gen2 Type-A (Rear) / 1 x USB 3.2 Gen1 Type-C (Rear) / 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front) / 6 x USB 2.0 (2 Rear, 4 Front)*All USB ports support ESD Protection

BIOS

128Mb AMI UEFI Legal BIOS with GUI support

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices / Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

Connector

1 x SPI TPM Header / 1 x Power LED and Speaker Header / 1 x RGB LED Header* / 3 x Addressable LED Headers** / 1 x CPU Fan Connector (4-pin)*** / 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** / 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)***** / 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** / 1 x 24 pin ATX Power Connector / 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) / 1 x Front Panel Audio Connector / 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) / 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) / 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)*Supports in total up to 12V/3A, 36W LED Strip** Support in total up to 5V/3A, 15W LED Strip***CPU_FAN1 supports the fan power up to 1A (12W).**** CPU_FAN2/WP supports the fan power up to 2A (24W).*****CHA_FAN5 supports the fan power up to 1A (12W).******CHA_FAN1~4/WP support the fan power up to 2A (24W).CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

Accessories

1 x User Manual / 2 x SATA Data Cables / 5 x Screws for M.2 Sockets
