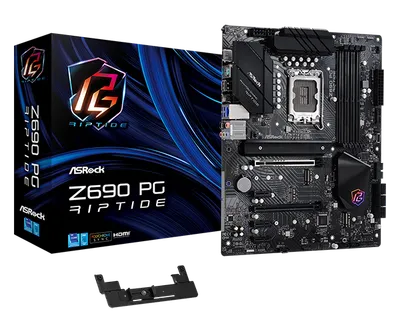

Sockel

LGA 1700

Chipset

Intel Z690

M.2-platser

2

Ethernet

2.5 Gigabit

Max minne

128 GB

PCIe-platser

CPU: / 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset: / 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* / 3 x PCIe 3.0 x1 Slots (PCIE2, PCIE4 and PCIE5)* / 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) / Supports AMD CrossFire*Supports NVMe SSD as boot disks

SATA-portar

8

Ljudkodek

Realtek ALC897

Dimensioner

305 × 244mm

Formfaktor

ATX

Minnestyp

DDR4

Minnesplatser

4

Displayutgångar

Intel Xe Graphics Architecture (Gen 12) / Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz / Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Max minneshastighet

5333 MHz

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

BIOS

256Mb AMI UEFI Legal BIOS with multilingual GUI support / ACPI 6.0 Compliant wake up events / SMBIOS 2.7 Support / CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices / Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

Connector

1 x SPI TPM Header / 1 x Power LED and Speaker Header / 1 x RGB LED Header* / 3 x Addressable LED Headers** / 1 x CPU Fan Connector (4-pin)*** / 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** / 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** / 1 x 24 pin ATX Power Connector / 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) / 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) / 1 x Front Panel Audio Connector / 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) / 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) / 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) / 1 x Clear CMOS Button*Supports in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

Accessories

I/O Shield / 2 x SATA Data Cables / 1 x Graphics Card Holder / 4 x Screws for M.2 Sockets / 1 x Standoff for M.2 Socket

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

3 x Antenna Mounting Points / 1 x PS/2 Mouse/Keyboard Port / 1 x HDMI Port / 1 x Optical SPDIF Out Port / 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection) / 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver) (Supports ESD Protection) / 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)* / 2 x USB 2.0 Ports (Supports ESD Protection) / 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) / 1 x BIOS Flashback Button / HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)*USB3_1 is from Intel Z690; USB3_2 is from ASMedia ASM3042.USB3_1_2 are the Lightning Gaming Ports.

Unique Feature

ASRock USB 3.2 Gen2 / ASRock USB 3.2 Gen2x2 Type-C Port (20 Gb/s) / ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)ASRock Super Alloy / XXL Aluminum Alloy Heatsink / Premium Power Choke / 55A Dr.MOS / Premium Memory Alloy Choke (Reduces 70% core loss compared to iron power choke) / Matte Black PCB / High Density Glass Fabric PCB / 2oz Copper PCBKiller 2.5G LANASRock Auto Driver InstallerASRock Steel SlotASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4)ASRock POST Status Checker (PSC)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop

Hardware Monitor

Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans / Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump / Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans / Voltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V

Software and UEFI

Software / ASRock Motherboard Utility (Phantom Gaming Tuning) / Killer Control Center / ASRock Polychrome SYNC*UEFI / ASRock EZ Mode / ASRock Full HD UEFI / ASRock My Favorites in UEFI / ASRock Auto Driver Installer / ASRock Instant Flash / ASRock Easy RAID Installer*These utilities can be downloaded from ASRock Live Update & APP Shop.
