ASRock

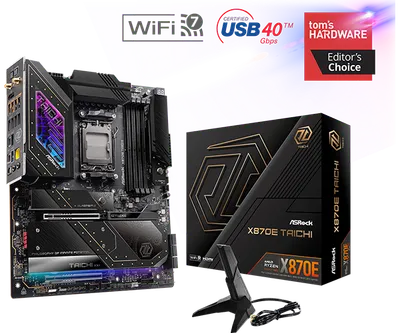

X870E Taichi

Specifikationer

Produktsida

WiFi: WiFi 7
Sockel: AM5
Chipset: AMD X870E
M.2-platser: 4
Ethernet: 5 Gigabit
Max minne: 256 GB
PCIe-platser: CPU: / 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*Chipset: / 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module / Supports AMD CrossFire*PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. Supports NVMe SSD as boot disks
SATA-portar: 6
Ljudkodek: Realtek ALC4082
Dimensioner: 305 267 mm
Formfaktor: EATX
Minnestyp: DDR5
Minnesplatser: 4
Displayutgångar: Integrated AMD RDNA graphics (Actual support may vary by CPU) / 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz / 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz** Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen 9000, 8000 and 7000 processors with embedded graphics.
Max minneshastighet: 8200 MHz

Övriga specifikationer

OS: Microsoft Windows 10 64-bit / 11 64-bit
USB: CPU: / 2 x USB4 Type-C (Rear) / 2 x USB 3.2 Gen2 Type-A (Rear)Chipset: / 1 x USB 3.2 Gen2x2 Type-C (Front) / 3 x USB 3.2 Gen2 Type-A (Rear) / 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front) / 6 x USB 2.0 (2 Rear, 4 Front)* All USB ports support ESD Protection
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices / Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Connector: 3 x Thermistor Cable Headers / 1 x Power LED and Speaker Header / 1 x RGB LED Header* / 3 x Addressable LED Headers** / 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** / 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** / 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** / 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** / 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) / 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) / 1 x Front Panel Audio Connector (15μ Gold Audio Connector) / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) / 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) / 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) / 1 x Dr. Debug with LED / 1 x Power Button with LED / 1 x Reset Button with LED* Supports in total up to 12V/3A, 36W LED Strip** Support in total up to 5V/3A, 15W LED Strip*** CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Accessories: 4 x SATA Data Cables / 1 x ASRock WiFi 2.4/5/6 GHz Antenna / 1 x ARGB Splitter Cable / 3 x Thermistor Cables

Priser hos återförsäljare

Butik	Logotyp	Pris	Lager
Inga aktuella priser tillgängliga.

Recensioner

Laddar recensioner…

Rear Panel I/O

2 x Antenna Ports / 1 x HDMI Port / 1 x Optical SPDIF Out Port / 2 x USB4 Type-C Ports (40 Gb/s)* / 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.) / 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)** / 2 x USB 2.0 Ports / 1 x RJ-45 LAN Port / 1 x Clear CMOS Button / 1 x BIOS Flashback Button / 1 x Line Out Jack (Gold Audio Jack) / 1 x Microphone Input Jack (Gold Audio Jack)* Supports USB PD 3.0 up to 5V@3A (15W) charging** Device exceeds USB 3.2 Type-A power rating of 5V@0.9A (4.5W) may trigger over-current protection (OCP), will require system reboot to restore USB power.
