ASRock

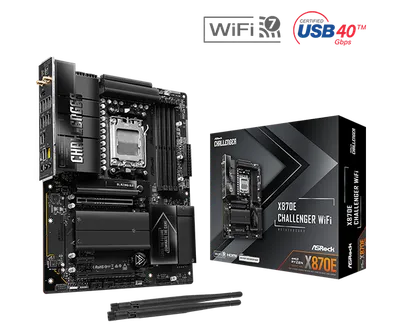

X870E Challenger WiFi

Specifikationer

Produktsida

WiFi: WiFi 7
Sockel: AM5
Chipset: AMD X870E
M.2-platser: 4
Ethernet: 5 Gigabit
Max minne: 256 GB
PCIe-platser: CPU: / 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset: / 1 x PCIe 3.0 x1 Slot (PCIE2), supports x1 mode* / 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode* / 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.Supports NVMe SSD as boot disks
SATA-portar: 2
Ljudkodek: Realtek ALC4082
Dimensioner: 305 244 mm
Formfaktor: ATX
Minnestyp: DDR5
Minnesplatser: 4
Displayutgångar: Integrated AMD RDNA graphics (Actual support may vary by CPU) / 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz / 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz**Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen 9000, 8000 and 7000 processors with embedded graphics.
Max minneshastighet: 8200 MHz

Övriga specifikationer

OS: Microsoft Windows 10 64-bit / 11 64-bit
USB: CPU: / 2 x USB4 Type-C (Rear) / 2 x USB 3.2 Gen2 Type-A (Rear (USB32_1 and USB32_7))Chipset: / 1 x USB 3.2 Gen2x2 Type-C (Front) / 3 x USB 3.2 Gen2 Type-A (Rear (USB32_2 and USB32_56)) / 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front) / 6 x USB 2.0 (2 Rear, 4 Front)*All USB ports support ESD Protection
BIOS: 512Mb AMI UEFI Legal BIOS with GUI support
RAID: Supports RAID 0 and RAID 1 for SATA storage devices / Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Connector: 1 x Power LED and Speaker Header / 1 x RGB LED Header* / 3 x Addressable LED Headers** / 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** / 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** / 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** / 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** / 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) / 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) / 1 x Front Panel Audio Connector / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) / 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) / 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)*Supports in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***CPU_FAN1 supports the fan power up to 1A (12W).CPU_FAN2, CHA_FAN1~3, AIO_PUMP and W_PUMP support the fan power up to 3A (36W).CPU_FAN2, CHA_FAN1~3, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Accessories: 2 x SATA Data Cables / 2 x ASRock WiFi 2.4/5/6 GHz Antennas
Certifications: FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Priser hos återförsäljare

Butik	Logotyp	Pris	Lager
Inga aktuella priser tillgängliga.

Recensioner

Laddar recensioner…

Rear Panel I/O

2 x Antenna Ports / 1 x HDMI Port / 1 x Optical SPDIF Out Port / 2 x USB4 Type-C Ports (40 Gb/s)* / 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.) / 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 support Ultra USB Power.)** / 2 x USB 2.0 Ports / 1 x RJ-45 LAN Port / 1 x Clear CMOS Button / 1 x BIOS Flashback Button / 1 x Line Out Jack (Gold Audio Jack) / 1 x Microphone Input Jack (Gold Audio Jack)*Supports USB PD 3.0 up to 5V@3A (15W) charging**Devices exceeding USB 3.2 Type-A power rating of 5V@0.9A (4.5W) may trigger over-current protection (OCP), which will require a system reboot to restore USB power.
