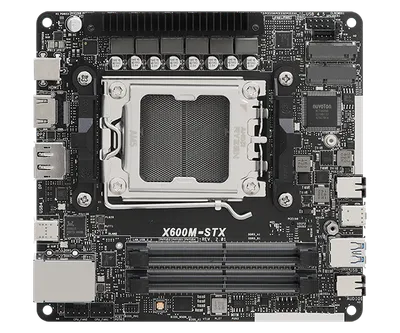

X600M-STX R2.0

Sockel

AM5

Chipset

AMD X600

M.2-platser

2

Ethernet

2.5 Gigabit

Max minne

128 GB

PCIe-platser

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

SATA-portar

2

Ljudkodek

Realtek ALC269

Dimensioner

140 147 mm

Formfaktor

STX

Minnestyp

DDR5

Displayutgångar

Integrated AMD RDNA graphics (Actual support may vary by CPU) / Three graphics output options: 1x HDMI, 1 x DisplayPort 1.4, 1 x USB4 / Supports Triple Monitor / 1 x HDMI 2.1 TMDS 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz / 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz / 1 x USB4, supports HDCP 2.3 and max. resolution up to 8K 30Hz**Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen 9000, 8000 and 7000 processors with embedded graphics.

Max minneshastighet

6400 MHz

Övriga specifikationer

OS

Microsoft Windows 10 64-bit

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

RAID

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Connector

1 x Chassis Intrusion Header / 2 x CPU Fan Connectors (2 x 4-pin) / 1 x Front Panel Header / 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) / 1 x Audio Header

Accessories

I/O Shield / 2 x SATA Data with Power Cable / 2 x Screws for M.2 Sockets / 1 x Screw for WiFi Module

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

1 x DC Jack (Compatible with the 19V power adapter)* / 1 x HDMI Port / 1 x DisplayPort 1.4 / 1 x USB4 Type-C Port (40 Gb/s)** / 2 x USB 3.2 Gen1 Ports / 1 x RJ-45 LAN Port*Please use 120W power adapter for 65W CPU and 90W power adapter for 35W CPU.**Supports USB PD 3.0 up to 5V@3A (15W) charging

Unique Feature

Superb Productivity / PCIe Gen5 (M.2) / Dual Channel DDR5 / USB4 Type-C Port (40 Gb/s)Ultrafast Connectivity / 2.5G LANEZ Update / ASRock Auto Driver Installer

Hardware Monitor

CPU Temperature Sensing / CPU Fan Tachometer / CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature) / CPU Fan Multi-Speed Control / Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
