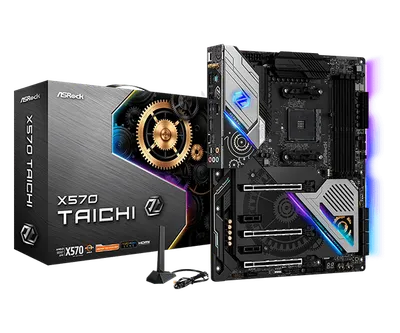

Chipset

AMD X570

M.2-platser

3

Max minne

128 GB

PCIe-platser

AMD Ryzen series CPUs (Vermeer, Matisse) / 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))*AMD Ryzen series CPUs (Cezanne, Renoir, Pinnacle Ridge) / 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))*AMD Ryzen series CPUs (Picasso) / 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1))*AMD X570 Chipset / 1 x PCI Express 4.0 x16 Slot (x4 (PCIE5))* / 2 x PCI Express 4.0 x1 Slots / Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX** / Supports NVIDIA Quad SLI and SLI*** / Supports NVIDIA NVLink with dual NVIDIA GeForce RTX series graphics cards*** / 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O) / 15μ Gold Contact in VGA PCIe Slot (PCIE1)*When Picasso is installed, this motherboard supports single graphics card on either PCIE1 or PCIE5 only.Supports NVMe SSD as boot disks**3-Way CrossFireX is only supported with Ryzen Series CPUs (Vermeer, Matisse, Cezanne, Renoir and Pinnacle Ridge).***NVIDIA NVLink Bridge does not come with the package. Please purchase it from NVIDIA if necessary.This feature is only supported with Ryzen Series CPUs (Vermeer, Matisse, Cezanne, Renoir and Pinnacle Ridge).

SATA-portar

8

Ljudkodek

Realtek ALC1220

Dimensioner

305 × 244mm

Formfaktor

ATX

Minnestyp

DDR4

Minnesplatser

4

Displayutgångar

Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* / DirectX 12, Pixel Shader 5.0 / Shared memory default 2GB. Max Shared memory supports up to 16GB.** / Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz / Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required) / Supports HDR (High Dynamic Range) with HDMI 2.0 / Supports HDCP 2.2 with HDMI 2.0 Port / Supports 4K Ultra HD (UHD) playback with HDMI 2.0 Port / Supports Microsoft PlayReady*Actual support may vary by CPU**The Max shared memory 16GB requires 32GB system memory installed.

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

BIOS

256Mb AMI UEFI Legal BIOS with GUI support / Supports "Plug and Play" / ACPI 5.1 compliance wake up events / Supports jumperfree / SMBIOS 2.3 support / CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, Voltage Multi-adjustment

Connector

1 x Power LED and Speaker Header / 1 x AMD Fan LED Header* / 1 x RGB LED Header** / 1 x Addressable LED Header*** / 1 x CPU Fan Connector (4-pin)**** / 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** / 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** / 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) / 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) / 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) / 1 x Front Panel Audio Connector (15μ Gold Audio Connector) / 1 x AMD LED Fan USB Header / 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC Card R2.0 only) / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) / 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) / 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) / 1 x Dr. Debug with LED / 1 x Power Button with LED / 1 x Reset Button with LED / 1 x Clear CMOS Button / 1 x SPI TPM Header********The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.**Supports in total up to 12V/3A, 36W LED Strip***Supports in total up to 5V/3A, 15W LED Strip****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.*****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.*******Please refer to the link for further information: https://asrock.com/mb/spec/product.asp?Model=TPM-SPI

Accessories

4 x SATA Data Cables / 1 x ASRock SLI_HB_Bridge_2S Card / 1 x ASRock WiFi 2.4/5 GHz Antenna / 1 x ASRock Screwdriver / 3 x Screws for M.2 Sockets / 2 x Standoffs for M.2 Sockets

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

2 x Antenna Ports / 1 x PS/2 Mouse/Keyboard Port / 1 x HDMI Port / 1 x Optical SPDIF Out Port / 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) / 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) / 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)* / 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) / 1 x Clear CMOS Button / 1 x BIOS Flashback Button / HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)*Ultra USB Power is supported on USB3_5_6 ports.ACPI wake-up function is not supported on USB3_5_6 ports.

Unique Feature

ASRock USB 3.2 Gen2 / ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) / ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) / ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy / XXL Aluminum Alloy Heatsink / Premium 60A Power Choke / 50A Dr.MOS / Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) / Combo Caps (Nichicon 12K Black Caps) / Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) / I/O Armor / Matte Black PCB / High Density Glass Fabric PCB / 2oz Copper PCBIntel 802.11ax WiFiASRock Steel SlotsASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4 & SATA3)ASRock Ultra USB PowerASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop

Hardware Monitor

Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans / Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans / Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans / Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans / Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP

Software and UEFI

Software / ASRock A-Tuning / ASRock Polychrome SYNCUEFI / ASRock Full HD UEFI / ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop.
