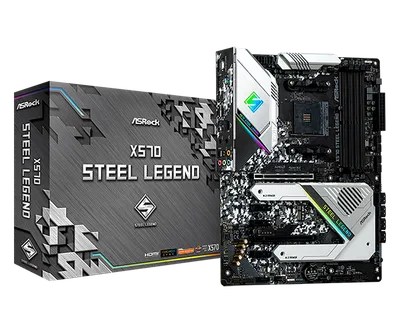

X570 Steel Legend

Chipset

AMD X570

M.2-platser

2

Max minne

128 GB

PCIe-platser

AMD Ryzen series CPUs (Vermeer, Matisse) / 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))*AMD Ryzen series CPUs (Cezanne, Renoir, Pinnacle Ridge) / 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))*AMD Ryzen series CPUs (Picasso) / 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE4))* / 3 x PCI Express 4.0 x1 Slots / Supports AMD Quad CrossFireX and CrossFireX / 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module / 15μ Gold Contact in VGA PCIe Slot (PCIE1)*Supports NVMe SSD as boot disks

SATA-portar

8

Ljudkodek

Realtek ALC1220

Dimensioner

305 244 mm

Formfaktor

ATX

Minnestyp

DDR4

Minnesplatser

4

Displayutgångar

Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* / DirectX 12, Pixel Shader 5.0 / Shared memory default 2GB. Max Shared memory supports up to 16GB.** / Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers / Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz / Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz / Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required) / Supports HDR (High Dynamic Range) with HDMI 2.0 / Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports / Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports / Supports Microsoft PlayReady*Actual support may vary by CPU**The Max shared memory 16GB requires 32GB system memory installed.

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

BIOS

256Mb AMI UEFI Legal BIOS with GUI support / Supports "Plug and Play" / ACPI 5.1 compliance wake up events / Supports jumperfree / SMBIOS 2.3 support / CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment

Connector

1 x Power LED and Speaker Header / 1 x AMD Fan LED Header* / 1 x RGB LED Header** / 1 x Addressable LED Header*** / 1 x CPU Fan Connector (4-pin)**** / 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** / 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** / 1 x 24 pin ATX Power Connector / 1 x 8 pin 12V Power Connector / 1 x 4 pin 12V Power Connector / 1 x Front Panel Audio Connector (15μ Gold Audio Connector) / 1 x AMD LED Fan USB Header / 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC Card R2.0 only) / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) / 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) / 1 x SPI TPM Header********The AMD Fan LED Header is compatible with a regular RGB LED stripe.The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.**Supports in total up to 12V/3A, 36W LED Strip***Supports in total up to 5V/3A, 15W LED Strip****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.*****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.*******Please refer to the link for further information: https://asrock.com/mb/spec/product.asp?Model=TPM-SPI

Accessories

4 x SATA Data Cables / 3 x Screws for M.2 Sockets / 2 x Standoffs for M.2 Sockets

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)
