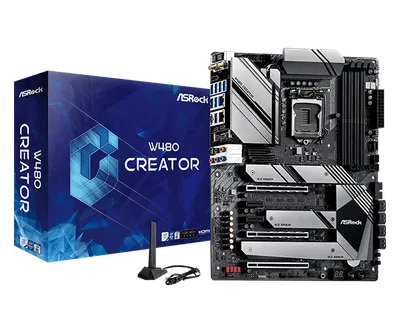

WiFi

WiFi 6

Chipset

Intel W480

M.2-platser

1

Ethernet

10 Gigabit

Max minne

128 GB

PCIe-platser

11th Gen Intel Core Processors / 3 x PCI Express x16 Slots (PCIE1/PCIE4/PCIE5: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE4); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE4) / Gen3x4 (PCIE5))*10th Gen Intel Core Processors / 3 x PCI Express x16 Slots (PCIE1/PCIE4/PCIE5: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE4); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE4) / Gen3x4 (PCIE5))* / 2 x PCI Express 2.0 x1 Slots / Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX / Supports NVIDIA Quadro graphics cards / 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O) / 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4)*PCIE5, M2_3 and SATA3_3 share lanes. If either one of them is in use, the others will be disabled.Supports NVMe SSD as boot disks

SATA-portar

6

Ljudkodek

Realtek ALC1220

Dimensioner

305 × 244mm

Formfaktor

ATX

Minnestyp

DDR4

Minnesplatser

4

Displayutgångar

Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1* / Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 / Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD Blu-ray Disc / Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz / Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) / Supports HDCP 2.3 with HDMI 1.4 Port / Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**VP9 10bit and VC-1 are for decode only.VP8 and VP9 encode are not supported by Windows OS.

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

BIOS

256Mb AMI UEFI Legal BIOS with multilingual GUI support / ACPI 6.0 Compliant wake up events / SMBIOS 2.7 Support / CPU Core/Cache, GT, DRAM, VPPM,VTTDDR, VCCSFR, VCCPLL_OC, PCH Voltage, VCCIO, VCCST, VCCSA, VPERGCOMP, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment

Connector

1 x SPI TPM Header / 1 x Power LED and Speaker Header / 2 x RGB LED Headers* / 2 x Addressable LED Headers** / 1 x CPU Fan Connector (4-pin)*** / 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** / 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** / 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) / 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) / 1 x Front Panel Audio Connector (15μ Gold Audio Connector) / 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Intel W480) (Supports ESD Protection) / 1 x USB 2.0 Header (Supports 1 USB 2.0 port) (ASMedia ASM1074 hub) (Supports ESD Protection) / 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) / 1 x Front Panel Type C USB 3.2 Gen2 Header (Intel W480) (Supports ESD Protection) / 1 x Clear CMOS Button / 1 x Dr. Debug with LED / 1 x Power Button with LED / 1 x Reset Button with LED*Support in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.****CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP, CHA_FAN5/WP and CHA_FAN6/WP can auto detect if 3-pin or 4-pin fan is in use.

Accessories

I/O Shield / 4 x SATA Data Cables / 1 x ASRock WiFi 2.4/5 GHz Antenna / 3 x Screws for M.2 Sockets / 2 x Standoffs for M.2 Sockets

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

2 x Antenna Ports / 1 x HDMI Port / 1 x Optical SPDIF Out Port / 2 x USB 3.2 Gen2 Thunderbolt 3 Type-C Ports (40Gb/s for Thunderbolt protocol; 10 Gb/s for USB3.2 protocol) (Supports ESD Protection)* / 2 x Mini DisplayPort Input Ports** (For Thunderbolt)** / 3 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection) / 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) / 1 x USB 3.2 Gen1 Port (Intel W480) (Supports ESD Protection) / 3 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)*** / 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) / 1 x Clear CMOS Button / 1 x BIOS Flashback Button / HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)*Supports USB-PD 3.0 9V/3A(27W) and 5V/3A(15W)**Please choose regular mini DisplayPort to DisplayPort adapter Cables instead of right angled ones if you use two mini DisplayPort input ports simultaneously.***Ultra USB Power is supported on USB3_234 ports.ACPI wake-up function is not supported on USB3_234 ports.

Unique Feature

ASRock USB 3.2 Gen2 / ASRock Front Panel USB 3.2 Gen2 Type-C Header (10 Gb/s) / ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) / ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy / XXL Aluminum Alloy Heatsink / Premium 60A Power Choke / 50A Dr.MOS / Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) / Combo Caps (Nichicon 12K Black Caps) / Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) / Matte Black PCB / High Density Glass Fabric PCB / 2oz Copper PCB Server-Grade Low-Loss PCBAQUANTIA / Marvell 10G LANIntel 2.5G LAN Intel 802.11ax WiFiASRock Steel SlotsASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4)ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Ultra USB PowerASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop

Hardware Monitor

Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans / Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans / Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans / Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans / Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST, VCCIO, VCCPLL_OC, VCCSFR, VCCSRF_OC

Software and UEFI

Software / ASRock Motherboard Utility (A-Tuning) / ASRock Polychrome SYNCUEFI / ASRock EZ Mode / ASRock Full HD UEFI / ASRock My Favorites in UEFI / ASRock Instant Flash / ASRock Internet Flash / ASRock Easy RAID Installer*These utilities can be downloaded from ASRock Live Update & APP Shop.
