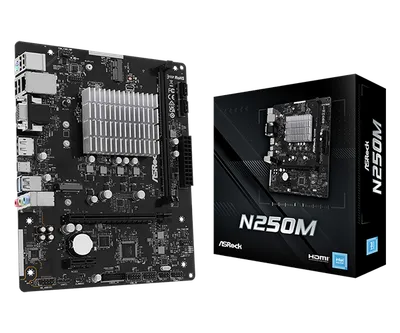

N250M

M.2-platser

1

Max minne

32 GB

PCIe-platser

1 x PCIe 3.0 x16 Slot (PCIE1), supports x2 mode* / 1 x PCIe 3.0 x1 Slot (PCIE2)* / 1 x M.2 Socket (Key E), supports type 2230 Intel CNVio/CNVio2 (Integrated WiFi/BT)*Supports NVMe SSD as boot disks

SATA-portar

2

Ljudkodek

Realtek ALC897

Dimensioner

226 178 mm

Formfaktor

Micro ATX

Minnestyp

DDR4

Minnesplatser

1

Displayutgångar

Integrated Intel UHD Graphics: 32 EUs inside (Up to 1250MHz) / Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 / 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.2 and max. resolution up to 4K 60Hz / 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.2 and max. resolution up to 4K 60Hz / 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

USB

CPU: / 1 x USB 3.2 Gen2 Type-C (Rear)Chipset: / 4 x USB 3.2 Gen1 (2 Rear, 2 Front) / 8 x USB 2.0 (4 Rear, 4 Front)*All USB ports support ESD Protection

BIOS

128Mb AMI UEFI Legal BIOS with GUI support

Connector

1 x SPI TPM Header / 1 x Chassis Intrusion and Speaker Header / 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)* / 1 x 24 pin ATX Power Connector / 1 x Front Panel Audio Connector / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) / 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)* CHA_FAN1~2/WP support the fan power up to 2A (24W).* CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.*

Accessories

1 x I/O Shield / 2 x SATA Data Cables / 1 x Screw for M.2 Socket

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

2 x Antenna Mounting Points / 1 x PS/2 Mouse/Keyboard Port / 1 x D-Sub Port / 1 x HDMI Port / 1 x DisplayPort 1.4 / 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) / 2 x USB 3.2 Gen1 Ports / 4 x USB 2.0 Ports / 1 x RJ-45 LAN Port / HD Audio Jacks: Line in / Front Speaker / Microphone

Unique Feature

Rock-Solid Durability / 2+1+1 Power PhaseEZ Update / ASRock Auto Driver InstallerEZ Troubleshooter / ASRock Post Status Checker
