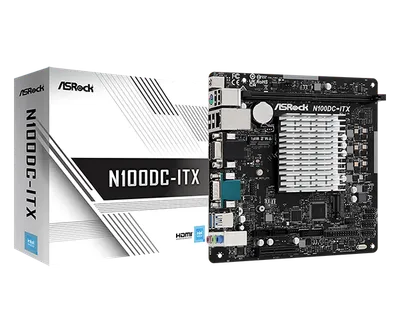

N100DC-ITX

M.2-platser

1

Max minne

32 GB

PCIe-platser

1 x PCIe 3.0 x4 Slot (PCIE1), supports x2 mode* / 1 x M.2 Socket (Key E), supports type 2230 Intel CNVio (Integrated WiFi/BT)***Supports NVMe SSD as boot disks**M.2 PCI Express module is not supported

SATA-portar

2

Ljudkodek

Realtek ALC897

Dimensioner

170 170 mm

Formfaktor

Mini-ITX

Minnestyp

DDR4

Minnesplatser

1

Displayutgångar

Integrated Intel UHD Graphics: 24 EUs inside (Up to 750MHz) / 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.2 and max. resolution up to 4K 60Hz / 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

USB

4 x USB 3.2 Gen1 (2 Rear, 2 Front) / 8 x USB 2.0 (4 Rear, 4 Front)*All USB ports support ESD Protection

BIOS

128Mb AMI UEFI Legal BIOS with GUI support

Connector

1 x Print Port Header / 1 x SPI TPM Header / 1 x Chassis Intrusion and Speaker Header / 2 x Chassis Fan Connectors (4-pin) / 1 x Front Panel Audio Connector / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) / 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

Accessories

1 x User Manual / 1 x I/O Shield / 2 x SATA Data Cables / 1 x SATA Power Cable / 2 x Screws for M.2 Sockets

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

1 x DC Jack (Compatible with the 19V power adapter, 5.5 x 2.5mm DC-in jack) / 2 x Antenna Mounting Points / 1 x PS/2 Mouse/Keyboard Port / 1 x Serial Port: COM1 / 1 x D-Sub Port / 1 x HDMI Port / 2 x USB 3.2 Gen1 Ports / 4 x USB 2.0 Ports / 1 x RJ-45 LAN Port / HD Audio Jacks: Line in / Front Speaker / Microphone

Unique Feature

Rock-Solid Durability / 2+1+1 Power Phase EZ Update / ASRock Auto Driver Installer

Software and UEFI

Software / ASRock Motherboard Utility (A-Tuning)UEFI / ASRock EZ Mode / ASRock Full HD UEFI / ASRock Auto Driver Installer / ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop.
