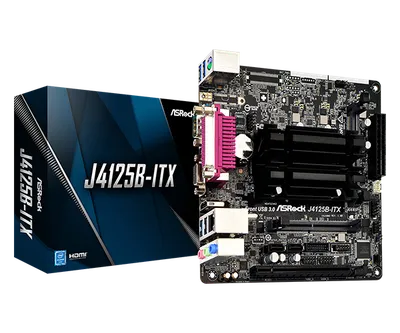

J4125B-ITX

Ethernet

1 Gigabit

Max minne

8 GB

PCIe-platser

1 x PCI Express 2.0 x16 Slot (PCIE1: x2 mode)

SATA-portar

2

Ljudkodek

Realtek ALC887

Dimensioner

170 170 mm

Formfaktor

Mini-ITX

Minnestyp

DDR4

Displayutgångar

Integrated Intel UHD Graphics 600: 12 EUs inside (Up to 750MHz) / DX12, OpenGL 4.4, OGL ES 3.1, OpenCL 1.2 / HW Acceleration Decode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit, VP9 10 bit / HW Acceleration Encode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit / Dual graphics output: support D-Sub and HDMI ports by independent display controllers / Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz / Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz / Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) / Supports HDCP 2.2 with HDMI Port / Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit*Supports UEFI mode only

BIOS

128Mb AMI UEFI Legal BIOS with GUI support / Supports Plug and Play / ACPI 5.0 compliant wake up events / Supports jumperfree / SMBIOS 3.0 support

Connector

1 x COM Port Header / 1 x Chassis Intrusion and Speaker Header / 1 x CPU Fan Connector (3-pin) / 1 x Chassis Fan Connector (3-pin) / 1 x 24 pin ATX Power Connector / 1 x Front Panel Audio Connector / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) / 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)**USB3_1_2 is shared with USB2_3.

Accessories

I/O Shield / 2 x SATA Data Cables

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

1 x PS/2 Mouse/Keyboard Port / 1 x Parallel Port (ECP/EPP Support) / 1 x Serial Port: COM1 / 1 x D-Sub Port / 1 x HDMI Port / 1 x USB 2.0 Port (Supports ESD Protection) / 3 x USB 3.2 Gen1 Ports (Supports ESD Protection) / 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) / HD Audio Jacks: Line in / Front Speaker / Microphone

Unique Feature

ASRock Super Alloy / Sapphire Black PCB / High Density Glass Fabric PCBASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop

Hardware Monitor

CPU/Chassis temperature sensing / CPU/Chassis Fan Tachometer / CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) / CPU/Chassis Fan multi-speed control / CASE OPEN detection / Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
