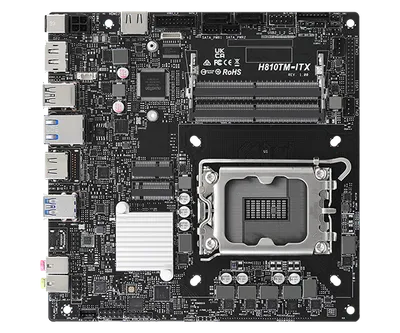

H810TM-ITX

Sockel

LGA 1851

Chipset

Intel H810

M.2-platser

2

Ethernet

2.5 Gigabit

Max minne

128 GB

PCIe-platser

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT)

SATA-portar

2

Ljudkodek

Realtek ALC269

Dimensioner

170 170 mm

Formfaktor

Mini-ITX

Minnestyp

DDR5

Displayutgångar

Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. / Intel Xe LPG Graphics Architecture / Four graphics output options: 2 x HDMI, 1 x DisplayPort 1.4, 1 x LVDS / Supports Triple Display / 2 x HDMI 2.1 TMDS/FRL 8G Compatible, support HDR, HDCP 2.3 and max. resolution up to 4K 120HzHDMI x 1 port (Rear)*HDMI x 1 port (Internal) / 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz / 1 x LVDS, supports max. resolution up to Full HD (1920x1080) 60Hz*Standard: HDMI; Optional: HDMI + DisplayPort (no Internal HDMI included)**Optional: USB4 (20 Gb/s) or Intel Thunderbolt 4

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

BIOS

128Mb AMI UEFI Legal BIOS with multilingual GUI support / ACPI 6.0 Compliant wake up events / SMBIOS 2.7 Support

Connector

1 x COM Port Header / 1 x Chassis Intrusion Header / 1 x Panel Voltage Selection Header / 1 x Backlight Inverter Voltage Selection Header / 1 x FPD Brightness Header / 1 x Panel Off Header / 1 x LVDS Connector / 1 x CPU Fan Connector (4-pin)* / 1 x Chassis Fan Connector (4-pin)** / 1 x 4 pin 19V Power Connector (2-Pin) / 1 x Front Panel Audio Connector / 1 x Internal Speaker Header (4-Pin) / 1 x Digital MIC Header / 2 x SATA Power Connectors / 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) / 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**The Chassis Fan supports the Chassis fan of maximum 1A (12W) fan power.

Accessories

Quick Installation Guide, I/O Shield / 2 x SATA Data with Power Cable / 2 x Screws for M.2 Sockets / 1 x Screw for WiFi Module

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

1 x DC Jack (Compatible with the 19V power adapter)* / 2 x HDMI Ports: HDMI1 (Rear), HDMI2 (Internal) / 1 x DisplayPort 1.4 / 2 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) ** / 2 x USB 2.0 Ports (Supports ESD Protection) / 1 x RJ-45 LAN Port*Please use 120W power adapter for 65W CPU and 90W power adapter for 35W CPU.**Supports USB PD 3.0 up to 5V@3A (15W) charging

Unique Feature

Superb Productivity / Dual Channel DDR5Ultrafast Connectivity / 2.5G LANEZ Update / ASRock Auto Driver Installer
