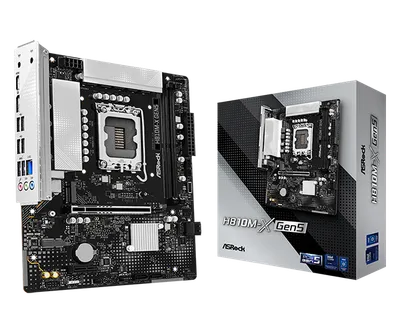

H810M-X Gen5

Sockel

LGA 1851

Chipset

Intel H810

M.2-platser

1

Ethernet

2.5 Gigabit

Max minne

128 GB

PCIe-platser

CPU: / 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset: / 1 x PCIe 4.0 x1 Slot (PCIE2)* / 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*Supports NVMe SSD as boot disks

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

244 193 mm

Formfaktor

Micro ATX

Minnestyp

DDR5

Minnesplatser

2

Displayutgångar

Intel Xe LPG Graphics Architecture / 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz / 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Övriga specifikationer

OS

Microsoft Windows 11 64-bit

USB

Chipset: / 1 x USB 3.2 Gen1 Type-C (Front) / 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) / 6 x USB 2.0 (4 Rear, 2 Front)*All USB ports support ESD Protection

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

Connector

1 x SPI TPM Header / 1 x Power LED and Speaker Header / 1 x RGB LED Header* / 2 x Addressable LED Headers** / 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** / 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**** / 1 x 24 pin ATX Power Connector / 1 x 8 pin 12V Power Connector / 1 x Front Panel Audio Connector / 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) / 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) / 1 x Front Panel Type C USB 3.2 Gen1 Header*Supports in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***CPU_FAN1 supports the fan power up to 1A (12W).****CHA_FAN1 supports the fan power up to 3A (36W).CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use.

Accessories

2 x SATA Data Cables / 1 x Screw for M.2 Socket

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

2 x Antenna Mounting Points / 1 x HDMI Port / 1 x DisplayPort 1.4 / 2 x USB 3.2 Gen1 Ports / 4 x USB 2.0 Ports / 1 x RJ-45 LAN Port / HD Audio Jacks: Line in / Front Speaker / Microphone

Unique Feature

Superb Productivity / PCIe Gen5 (Graphics) / Dual Channel DDR5Rock-Solid Durability / 6+1+1+1+1 Power Phase / Pre-Installed I/O ShieldASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) TechnologyUltrafast Connectivity / 2.5G LANEZ Update / ASRock Auto Driver Installer
