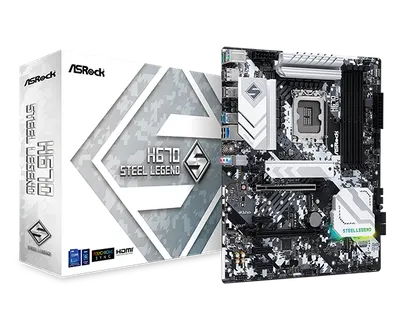

H670 Steel Legend

Sockel

LGA 1700

Chipset

Intel H670

M.2-platser

3

Ethernet

2.5 Gigabit

Max minne

128 GB

PCIe-platser

CPU: / 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset: / 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* / 3 x PCIe 3.0 x1 Slots (PCIE2, PCIE4 and PCIE5)* / 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) / Supports AMD CrossFire*Supports NVMe SSD as boot disks

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

305 244 mm

Formfaktor

ATX

Minnestyp

DDR4

Minnesplatser

4

Displayutgångar

Intel Xe Graphics Architecture (Gen 12) / Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers / Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz / Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz / Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Max minneshastighet

5333 MHz

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

BIOS

128Mb AMI UEFI Legal BIOS with multilingual GUI support / ACPI 6.0 Compliant wake up events / SMBIOS 2.7 Support / CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices / Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

Connector

1 x SPI TPM Header / 1 x Power LED and Speaker Header / 1 x RGB LED Header* / 3 x Addressable LED Headers** / 1 x CPU Fan Connector (4-pin)*** / 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** / 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** / 1 x 24 pin ATX Power Connector / 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) / 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) / 1 x Front Panel Audio Connector / 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) / 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) / 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) / 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)*Supports in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

Accessories

I/O Shield / 2 x SATA Data Cables / 4 x Screws for M.2 Sockets / 1 x Standoff for M.2 Socket

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)
