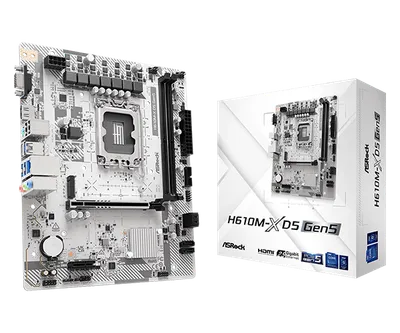

H610M-X D5 Gen5

Sockel

LGA 1700

Chipset

Intel H610

M.2-platser

1

Ethernet

2.5 Gigabit

Max minne

128 GB

PCIe-platser

CPU: / 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset: / 1 x PCIe 3.0 x1 Slot (PCIE2)** Supports NVMe SSD as boot disks

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

244 193 mm

Formfaktor

Micro ATX

Minnestyp

DDR5

Minnesplatser

2

Displayutgångar

Intel Xe Graphics Architecture (Gen 12) / 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz / 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

USB

Chipset: / 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) / 6 x USB 2.0 (4 Rear, 2 Front)* All USB ports support ESD Protection

BIOS

128Mb AMI UEFI Legal BIOS with GUI support

Connector

1 x SPI TPM Header / 1 x Chassis Intrusion and Speaker Header / 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)* / 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** / 1 x 24 pin ATX Power Connector / 1 x 8 pin 12V Power Connector / 1 x Front Panel Audio Connector / 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) / 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)* CPU_FAN1 supports the fan power up to 1A (12W).** CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

Accessories

1 x I/O Shield / 2 x SATA Data Cables / 1 x Screw for M.2 Socket

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

1 x PS/2 Mouse/Keyboard Port / 1 x D-Sub Port / 1 x HDMI Port / 2 x USB 3.2 Gen1 Type-A Ports / 4 x USB 2.0 Ports / 1 x RJ-45 LAN Port / HD Audio Jacks: Line in / Front Speaker / Microphone

Unique Feature

Superb Productivity / PCIe Gen5 (Graphics) / Dual Channel DDR5Rock-Solid Durability / 6+1+1 Power Phase / ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) TechnologyUltrafast Connectivity / 2.5G LANEZ Update / ASRock Auto Driver Installer
