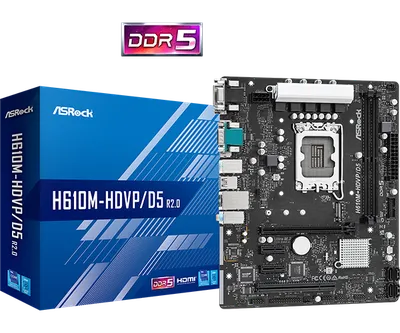

H610M-HDVP/D5 R2.0

Sockel

LGA 1700

Chipset

Intel H610

M.2-platser

1

Ethernet

1 Gigabit

Max minne

96 GB

PCIe-platser

CPU: / 1 x PCIe 4.0 x16 (PCIE1), supports x16 mode*Chipset: / 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*ASMedia ASM1083: / 1 x PCI Slot*Supports NVMe SSD as boot disks

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

243 198 mm

Formfaktor

Micro ATX

Minnestyp

DDR5

Minnesplatser

2

Displayutgångar

Intel Xe Graphics Architecture (Gen 12) / Four graphics output options: D-Sub, DVI-D, HDMI and DisplayPort 1.4** / Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz / Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz / Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz / Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz / Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**Supports up to 3 displays simultaneously

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

BIOS

128Mb AMI UEFI Legal BIOS with multilingual GUI support / ACPI 6.0 Compliant wake up events / SMBIOS 2.7 Support / CPU Core/Cache, CPU GT, VDD_CPU, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment

Connector

1 x Print Port Header / 1 x COM Port Header / 1 x SPI TPM Header / 1 x Chassis Intrusion and Speaker Header / 1 x CPU Fan Connector (4-pin)* / 1 x Chassis Fan Connector (4-pin)** / 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** / 1 x 24 pin ATX Power Connector / 1 x 8 pin 12V Power Connector / 1 x Front Panel Audio Connector / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) / 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**The Chassis Fan supports the Chassis fan of maximum 1A (12W) fan power.***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

Accessories

I/O Shield / 2 x SATA Data Cables / 1 x Screw for M.2 Socket

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

1 x PS/2 Keyboard Port / 1 x PS/2 Mouse Port / 1 x Serial Port: COM1 / 1 x D-Sub Port / 1 x DVI-D Port / 1 x HDMI Port / 1 x DisplayPort 1.4 / 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) / 2 x USB 2.0 Ports (Supports ESD Protection) / 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) / HD Audio Jacks: Line in / Front Speaker / Microphone
