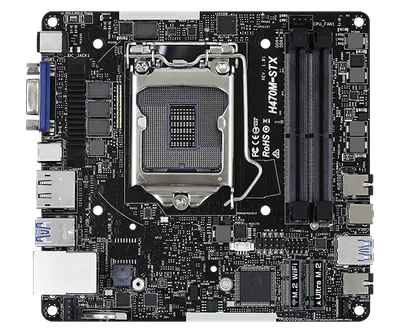

H470M-STX

Sockel

LGA 1200

Chipset

Intel H470

M.2-platser

1

Max minne

64 GB

PCIe-platser

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT)

SATA-portar

2

Ljudkodek

Realtek ALC233

Dimensioner

140 147 mm

Formfaktor

STX

Minnestyp

DDR4

Displayutgångar

Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1** / Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 / Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc / Four graphics output options: D-Sub, HDMI, DisplayPort 1.4 and DisplayPort 1.4 (over USB Type-C Alt Mode)*** / Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz / Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz**** / Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz / Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) / Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports / Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**VP9 10bit and VC-1 are for decode only.VP8 and VP9 encode are not supported by Windows OS.***Supports up to 3 displays simultaneously****D-Sub is only supported with 10th Gen Intel Core Processors.

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

BIOS

128Mb AMI UEFI Legal BIOS with multilingual GUI support / ACPI 6.0 Compliant wake up events / SMBIOS 2.7 Support / DRAM Voltage Multi-adjustment

Connector

2 x CPU Fan Connectors (2 x 4-pin) / 1 x Internal Speaker Header / 1 x Front Panel Header / 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) / 1 x Audio Header

Accessories

I/O Shield / 2 x SATA Data with Power Cable / 2 x Screws for M.2 Sockets / 1 x Screw for WiFi Module

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

1 x DC Jack (Compatible with the 19V power adapter)* / 1 x D-Sub Port / 1 x HDMI Port / 1 x DisplayPort 1.4 / 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) / 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)** / 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)*Please use 120W power adapter for 65W CPU and 90W power adapter for 35W CPU.**Supports USB Type-C Alt Mode

Unique Feature

USB 3.2 Gen2 / USB 3.2 Gen2 Type-A Port (10 Gb/s)Ultra M.2 (PCIe Gen3 x4 & SATA3)Full Spike Protection (for all USB, Audio, LAN Ports)

Hardware Monitor

CPU Temperature Sensing / CPU Fan Tachometer / CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature) / CPU Fan Multi-Speed Control / Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
