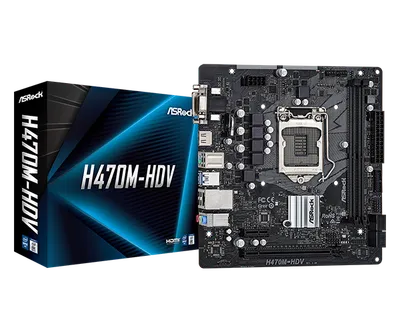

H470M-HDV

Chipset

Intel H470

Ethernet

1 Gigabit

Max minne

64 GB

PCIe-platser

1 x PCI Express 3.0 x16 Slot* / 1 x PCI Express 3.0 x1 Slot*Supports NVMe SSD as boot disks

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

197 188 mm

Formfaktor

Micro ATX

Minnestyp

DDR4

Minnesplatser

2

Displayutgångar

Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1** / Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 / Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD Blu-ray Disc / Three graphics output options: D-Sub, DVI-D and HDMI / Supports Triple Monitor / Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz / Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz / Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz / Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) / Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports / Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**VP9 10bit and VC-1 are for decode only.VP8 and VP9 encode are not supported by Windows OS.

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

BIOS

128Mb AMI UEFI Legal BIOS with multilingual GUI support / ACPI 6.0 Compliant wake up events / SMBIOS 2.7 Support / CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment

Connector

1 x SPI TPM Header / 1 x Chassis Intrusion and Speaker Header / 1 x CPU Fan Connector (4-pin)* / 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** / 1 x 24 pin ATX Power Connector / 1 x 8 pin 12V Power Connector / 1 x Front Panel Audio Connector / 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) / 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

Accessories

I/O Shield / 2 x SATA Data Cables

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

1 x PS/2 Mouse/Keyboard Port / 1 x D-Sub Port / 1 x DVI-D Port / 1 x HDMI Port / 4 x USB 2.0 Ports (Supports ESD Protection) / 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) / 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) / HD Audio Jacks: Line in / Front Speaker / Microphone

Unique Feature

ASRock Super Alloy / Premium 50A Power Choke / Sapphire Black PCB / High Density Glass Fabric PCBASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop
