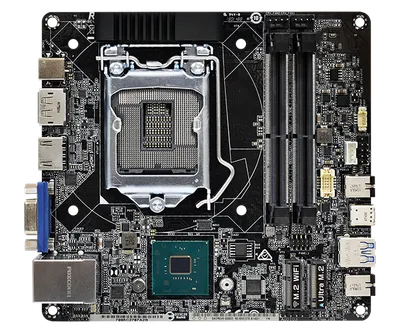

H310M-STX/COM

Chipset

Intel H310

Max minne

64 GB

PCIe-platser

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)

SATA-portar

2

Ljudkodek

Realtek ALC233

Dimensioner

140 147 mm

Formfaktor

STX

Minnestyp

DDR4

Displayutgångar

Supports Intel UHD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics / DirectX 12 / HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 / Max. shared memory 1024MB** / Three graphics output options: D-Sub, HDMI and DisplayPort 1.2*** / Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz / Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz / Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz / Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) / Supports HDCP with HDMI and DisplayPort 1.2 Ports / Supports 4K Ultra HD (UHD) playback with HDMI and DisplayPort 1.2 Ports*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**The size of maximum shared memory may vary from different operating systems.***Supports up to 2 displays simultaneously

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

BIOS

128Mb AMI UEFI Legal BIOS with multilingual GUI support / ACPI 6.0 Compliant wake up events / SMBIOS 2.7 Support / DRAM Voltage Multi-adjustment

Connector

1 x COM Port Header / 1 x Chassis Intrusion Header / 2 x CPU Fan Connectors (2 x 4-pin) / 1 x Internal Speaker Header / 1 x Front Panel Header / 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) / 1 x SD Card Socket / 1 x Audio Header

Accessories

I/O Shield / 2 x SATA Data with Power Cable / 1 x Screw for M.2 Socket / 1 x Screw for WiFi Module

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

1 x DC Jack (Compatible with the 19V power adapter)* / 1 x D-Sub Port / 1 x HDMI Port / 1 x DisplayPort 1.2 / 1 x USB 2.0 Port (Supports ESD Protection) / 1 x USB 3.1 Gen1 Port (Supports ESD Protection) / 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)*Please use 120W power adapter for 65W CPU and 90W power adapter for 35W CPU.

Unique Feature

Ultra M.2 (PCIe Gen3 x4 & SATA3)Full Spike Protection (for all USB, Audio, LAN Ports)

Hardware Monitor

CPU Temperature Sensing / CPU Fan Tachometer / CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature) / CPU Fan Multi-Speed Control / CASE OPEN detection / Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
