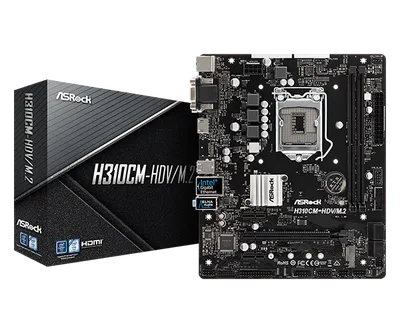

H310CM-HDV/M.2

Chipset

Intel H310

M.2-platser

1

Max minne

32 GB

PCIe-platser

1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* / 2 x PCI Express 2.0 x1 Slots*Supports NVMe SSD as boot disks

SATA-portar

4

Ljudkodek

Realtek ALC887

Dimensioner

226 188 mm

Formfaktor

Micro ATX

Minnestyp

DDR4

Minnesplatser

2

Displayutgångar

Supports Intel UHD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics / DirectX 12 / HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 / Three graphics output options: D-Sub, DVI-D and HDMI** / Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz / Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz / Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz / Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) / Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports / Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**Supports up to 2 displays simultaneously

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

BIOS

128Mb AMI UEFI Legal BIOS with multilingual GUI support / ACPI 6.0 Compliant wake up events / SMBIOS 2.7 Support / CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment

Connector

1 x Print Port Header / 1 x COM Port Header / 1 x TPM Header / 1 x Chassis Intrusion and Speaker Header / 1 x CPU Fan Connector (4-pin)* / 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** / 1 x 24 pin ATX Power Connector / 1 x 8 pin 12V Power Connector / 1 x Front Panel Audio Connector / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) / 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.***USB_11_12 is shared with USB_9_10.

Accessories

I/O Shield / 2 x SATA Data Cables / 1 x Screw for M.2 Socket

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

1 x PS/2 Mouse/Keyboard Port / 1 x D-Sub Port / 1 x DVI-D Port / 1 x HDMI Port / 4 x USB 2.0 Ports (Supports ESD Protection) / 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) / 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) / HD Audio Jacks: Line in / Front Speaker / Microphone

Unique Feature

ASRock Super Alloy / Sapphire Black PCB / High Density Glass Fabric PCBASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop
