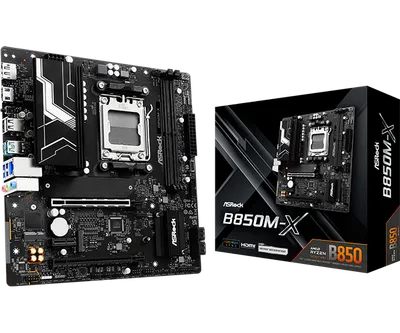

B850M-X

Sockel

AM5

Chipset

AMD B850

M.2-platser

2

Ethernet

2.5 Gigabit

Max minne

128 GB

PCIe-platser

CPU: / 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*Chipset: / 1 x PCIe 4.0 x1 Slot (PCIE2)* / 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* / 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*PCIE1 will run at Gen4x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.Supports NVMe SSD as boot disks

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

244 226 mm

Formfaktor

Micro ATX

Minnestyp

DDR5

Minnesplatser

2

Displayutgångar

Integrated AMD RDNA graphics (Actual support may vary by CPU) / 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz / 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Max minneshastighet

8200 MHz

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

USB

CPU: / 3 x USB 3.2 Gen1 Type-A (Rear) / 1 x USB 2.0 (Rear (USB_2))Chipset: / 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) / 2 x USB 3.2 Gen1 Type-A (Front) / 5 x USB 2.0 (1 Rear (USB_1), 4 Front)*All USB ports support ESD Protection

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices / Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices**Requires additional M.2 NVMe expansion cards to support RAID 10

Connector

1 x Thermistor Cable Header / 1 x SPI TPM Header / 1 x Power LED and Speaker Header / 1 x RGB LED Header* / 3 x Addressable LED Headers** / 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** / 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** / 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** / 1 x 24 pin ATX Power Connector / 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) / 1 x Front Panel Audio Connector / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) / 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) / 1 x Front Panel Type C USB 3.2 Gen1 Header*Supports in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***CPU_FAN1 supports the fan power up to 1A (12W).***CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W).CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

Accessories

1 x I/O Shield / 2 x SATA Data Cables / 1 x Screw for M.2 Socket

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)
