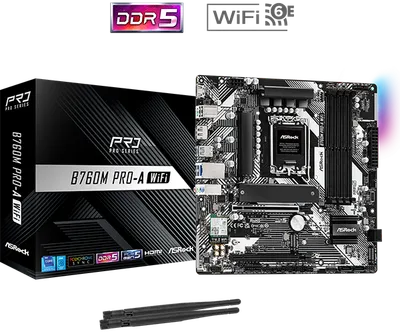

B760M Pro-A WiFi

WiFi

WiFi 6

Sockel

LGA 1700

Chipset

Intel B760

M.2-platser

3

Ethernet

2.5 Gigabit

Max minne

256 GB

PCIe-platser

CPU: / 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset: / 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* / 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) / Supports AMD CrossFire* Supports NVMe SSD as boot disks

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

244 244 mm

Formfaktor

Micro ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

Intel Xe Graphics Architecture (Gen 12) / 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz / 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Max minneshastighet

7200 MHz

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

USB

Chipset: / 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) / 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) / 6 x USB 2.0 (2 Rear, 4 Front)* All USB ports support ESD Protection

BIOS

128Mb AMI UEFI Legal BIOS with GUI support

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Connector

1 x SPI TPM Header / 1 x Chassis Intrusion and Speaker Header / 1 x RGB LED Header* / 3 x Addressable LED Headers** / 1 x CPU Fan Connector (4-pin)*** / 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** / 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** / 1 x 24 pin ATX Power Connector / 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) / 1 x Front Panel Audio Connector / 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) / 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) / 1 x Front Panel Type C USB 3.2 Gen1 Header* Supports in total up to 12V/3A, 36W LED Strip** Support in total up to 5V/3A, 15W LED Strip*** CPU_FAN1 supports the fan power up to 1A (12W).**** CPU_FAN2/WP supports the fan power up to 2A (24W).***** CHA_FAN1~4/WP support the fan power up to 2A (24W).***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

Accessories

1 x User Manual / 1 x I/O Shield / 2 x SATA Data Cables / 2 x SMA WiFi Antenna Cables / 2 x ASRock WiFi 2.4/5/6 GHz Antennas / 1 x Plastic Cover for Wi-Fi Module / 3 x Screws for M.2 Sockets / 1 x Standoff for M.2 Socket

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)
