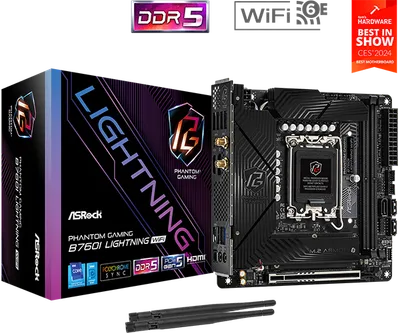

B760I Lightning WiFi

WiFi

WiFi 6

Sockel

LGA 1700

Chipset

Intel B760

M.2-platser

2

Ethernet

2.5 Gigabit

Max minne

128 GB

PCIe-platser

CPU: / 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset: / 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)* Supports NVMe SSD as boot disks

SATA-portar

3

Ljudkodek

Realtek ALC897

Dimensioner

170 170 mm

Formfaktor

Mini-ITX

Minnestyp

DDR5

Minnesplatser

2

Displayutgångar

Intel Xe Graphics Architecture (Gen 12) / 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz / 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Max minneshastighet

8600 MHz

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

USB

Chipset: / 1 x USB 3.2 Gen2 Type-A (Rear) / 1 x USB 3.2 Gen2 Type-C (Rear) / 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front) / 1 x USB 3.2 Gen1 Type-C (Front) / 1 x USB 2.0 (Front)* All USB ports support ESD Protection

BIOS

128Mb AMI UEFI Legal BIOS with GUI support

RAID

Supports RAID 0, RAID 1 and RAID 5 for SATA storage devices

Connector

2 x Addressable LED Headers* / 1 x Thermistor Cable Header / 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** / 2 x Chassis Fan Connectors (4-pin)*** / 1 x 24 pin ATX Power Connector / 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) / 1 x Front Panel Audio Connector / 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) / 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) / 1 x Front Panel Type C USB 3.2 Gen1 Header* Support in total up to 5V/3A, 15W LED Strip** CPU_FAN1/WP supports the fan power up to 2A (24W). CPU_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.*** CHA_FAN1 and CHA_FAN2 support the fan power up to 1A (12W).

Accessories

2 x SATA Data Cables / 2 x ASRock WiFi 2.4/5/6 GHz Antennas / 1 x Screw for M.2 Socket / 1 x Thermistor Cable

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

2 x Antenna Ports / 1 x HDMI Port / 1 x DisplayPort 1.4 / 1 x Optical SPDIF Out Port / 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) / 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) / 4 x USB 3.2 Gen1 Ports / 1 x RJ-45 LAN Port / 1 x Line Out Jack (Gold Audio Jack) / 1 x Microphone Input Jack (Gold Audio Jack)
