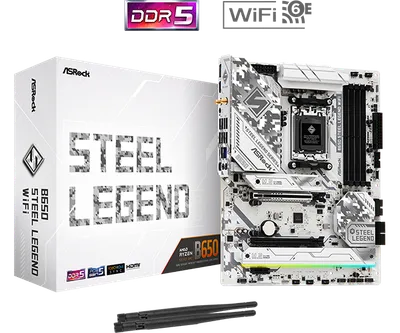

B650 Steel Legend WiFi

WiFi

WiFi 6

Sockel

AM5

Chipset

AMD B650

M.2-platser

3

Ethernet

2.5 Gigabit

Max minne

256 GB

PCIe-platser

CPU: / 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset: / 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* / 1 x PCIe 4.0 x1 Slot (PCIE3)* / 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module / Supports AMD CrossFire / 15μ Gold Contact in VGA PCIe Slot (PCIE1)* Supports NVMe SSD as boot disksIf SATA3_0 and SATA3_1 are occupied, PCIE2 will downgrade to x2 mode.

SATA-portar

2

Ljudkodek

Realtek ALC4082

Dimensioner

305 244 mm

Formfaktor

ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

Integrated AMD RDNA graphics (Actual support may vary by CPU) / 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz / 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Max minneshastighet

7200 MHz

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

USB

CPU: / 1 x USB 3.2 Gen2 Type-A (Rear) / 2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_12)) Chipset: / 1 x USB 3.2 Gen2x2 Type-C (Rear) / 1 x USB 3.2 Gen1 Type-C (Front) / 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_34), 4 Front) / 8 x USB 2.0 (4 Rear, 4 Front)* All USB ports support ESD Protection

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

RAID

Supports RAID 0 and RAID 1 for SATA storage devices / Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices** Requires additional M.2 NVMe expansion cards to support RAID 10

Connector

1 x SPI TPM Header / 1 x Power LED and Speaker Header / 1 x RGB LED Header* / 3 x Addressable LED Headers** / 1 x CPU Fan Connector (4-pin)*** / 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** / 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** / 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) / 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) / 1 x Front Panel Audio Connector / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) / 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) / 1 x Front Panel Type C USB 3.2 Gen1 Header* Supports in total up to 12V/3A, 36W LED Strip** Support in total up to 5V/3A, 15W LED Strip*** CPU_FAN1 supports the fan power up to 1A (12W).**** CPU_FAN2/WP supports the fan power up to 2A (24W).***** CHA_FAN1~4/WP support the fan power up to 2A (24W).***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

Accessories

1 x User Manual / 2 x SATA Data Cables / 2 x ASRock WiFi 2.4/5/6 GHz Antennas / 3 x Screws for M.2 Sockets / 1 x Standoff for M.2 Socket
