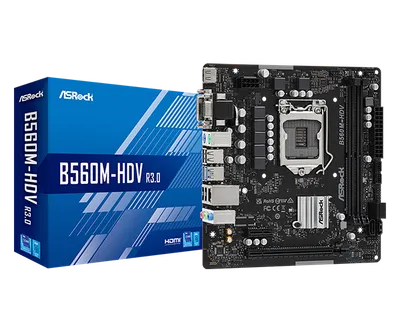

B560M-HDV R3.0

Sockel

LGA 1200

Chipset

Intel B560

Ethernet

1 Gigabit

Max minne

64 GB

PCIe-platser

11th Gen Intel Core Processors / 1 x PCI Express 4.0 x16 Slot*10th Gen Intel Core Processors / 1 x PCI Express 3.0 x16 Slot* / 1 x PCI Express 3.0 x1 Slot*Supports NVMe SSD as boot disks

SATA-portar

4

Ljudkodek

Realtek ALC887

Dimensioner

197 188 mm

Formfaktor

Micro ATX

Minnestyp

DDR4

Minnesplatser

2

Displayutgångar

11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics / Three graphics output options: D-Sub, DVI-D and HDMI** / Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel Core Processors / Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel Core Processors / Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz / Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz / Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) / Supports HDCP 2.3 with DVI-D and HDMI 2.0 Ports / Supports HDCP 2.2 with DVI-D and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel Core Processors)*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.* Graphics specifications may vary between CPU types.**Supports up to 2 displays simultaneously

Max minneshastighet

4000 MHz

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

BIOS

128Mb AMI UEFI Legal BIOS with multilingual GUI support / ACPI 6.0 Compliant wake up events / SMBIOS 2.7 Support / CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, CPU Standby, VCCIN AUX Voltage Multi-adjustment

Connector

1 x SPI TPM Header / 1 x Chassis Intrusion and Speaker Header / 1 x CPU Fan Connector (4-pin)* / 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** / 1 x 24 pin ATX Power Connector / 1 x 8 pin 12V Power Connector / 1 x Front Panel Audio Connector / 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) / 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

Accessories

User Manual, I/O Shield / 2 x SATA Data Cables

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

1 x PS/2 Keyboard Port / 1 x PS/2 Mouse Port / 1 x D-Sub Port / 1 x DVI-D Port / 1 x HDMI Port / 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) / 4 x USB 2.0 Ports (Supports ESD Protection) / 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) / HD Audio Jacks: Line in / Front Speaker / Microphone

Unique Feature

ASRock Super Alloy / Premium 50A Power Choke / Sapphire Black PCB / High Density Glass Fabric PCBASRock Auto Driver InstallerASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop
