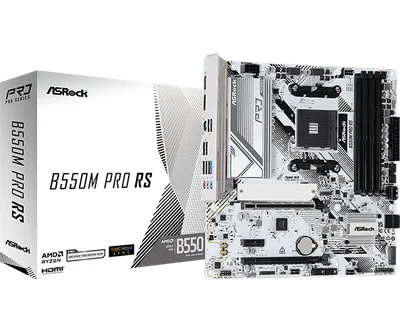

B550M Pro RS

Chipset

AMD B550

M.2-platser

1

Ethernet

2.5 Gigabit

Max minne

128 GB

PCIe-platser

AMD Ryzen series CPUs (Vermeer and Matisse) / 2 x PCIe x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)* / 2 x PCIe x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)* / 2 x PCIe x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode) / Supports AMD CrossFire / 1 x PCIe 3.0 x1 Slot (PCIE2: x1 mode)* AMD Ryzen series APUs (Cezanne and Renoir) AMD Ryzen series APUs (Picasso)** Supports NVMe SSD as boot disks

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

244 244 mm

Formfaktor

Micro ATX

Minnestyp

DDR4

Minnesplatser

4

Displayutgångar

Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* (Actual support may vary by CPU) / 1 x HDMI 2.1, supports HDR, HDCP 2.3, 4K Ultra HD (UHD) playback and max. resolution up to 4K 60Hz* / 1 x DisplayPort 1.4, supports HDCP 2.3, 4K Ultra HD (UHD) playback and max. resolution up to 5K 120Hz** Picasso supports HDCP 2.2 with HDMI 2.0 Port

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

USB

CPU: / 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_12), 2 Front (USB3_5_6)) Chipset: / 2 x USB 3.2 Gen1 Type-A (Rear (USB32_34)) / 6 x USB 2.0 (2 Rear, 4 Front)* All USB ports support ESD Protection

BIOS

128Mb AMI UEFI Legal BIOS with GUI support

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Connector

1 x SPI TPM Header / 1 x Power LED and Speaker Header / 2 x RGB LED Headers* / 2 x Addressable LED Headers** / 1 x CPU Fan Connector (4-pin)*** / 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** / 1 x 24 pin ATX Power Connector / 1 x 8 pin 12V Power Connector / 1 x Front Panel Audio Connector / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) / 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)* Support in total up to 12V/3A, 36W LED Strip** Support in total up to 5V/3A, 15W LED Strip*** CPU_FAN1 supports the fan power up to 1A (12W).**** CHA_FAN1~3/WP support the fan power up to 2A (24W). CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

Accessories

1 x User Manual / 2 x SATA Data Cables / 1 x Screw for M.2 Socket

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

1 x PS/2 Mouse/Keyboard Port / 1 x HDMI Port / 1 x DisplayPort 1.4 / 4 x USB 3.2 Gen1 Ports / 2 x USB 2.0 Ports / 1 x RJ-45 LAN Port with LED / HD Audio Jacks: Line in / Front Speaker / Microphone
