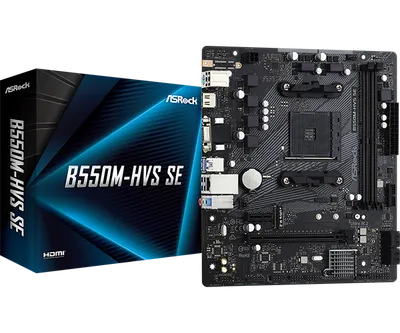

B550M-HVS SE

Chipset

AMD PRO565

M.2-platser

1

Ethernet

1 Gigabit

Max minne

64 GB

PCIe-platser

CPU: / 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*Chipset: / 1 x PCIe 3.0 x1 Slot (PCIE1)*Supports NVMe SSD as boot disksWhen using certain NVIDIA RTX 4060 graphics cards on this motherboard, PCIE2 will run at PCIe 3.0 mode.

SATA-portar

4

Ljudkodek

Realtek ALC887

Dimensioner

230 201 mm

Formfaktor

Micro ATX

Minnestyp

DDR4

Minnesplatser

2

Displayutgångar

Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU** Actual support may vary by CPU / DirectX 12, Pixel Shader 5.0 / Shared memory default 2GB. Max Shared memory supports up to 16GB.* / Dual graphics output: support D-Sub and HDMI ports by independent display controllers / Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz / Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz / Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) / Supports HDR (High Dynamic Range) with HDMI 2.1 / Supports HDCP 2.3 with HDMI 2.1 Port* Picasso supports HDCP 2.2 with HDMI 2.0 Port / Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port / Supports Microsoft PlayReady*The Max shared memory 16GB requires 32GB system memory installed.

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

BIOS

128Mb AMI UEFI Legal BIOS with GUI support / Supports "Plug and Play" / ACPI 5.1 compliance wake up events / Supports jumperfree / SMBIOS 2.3 support / CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Connector

1 x SPI TPM Header / 1 x COM Port Header / 1 x Chassis Intrusion and Speaker Header / 1 x CPU Fan Connector (4-pin)* / 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** / 1 x 24 pin ATX Power Connector / 1 x 4 pin 12V Power Connector / 1 x Front Panel Audio Connector / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) / 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power.CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.

Accessories

1 x I/O Shield / 1 x User Manual / 2 x SATA Data Cables / 1 x Screw for M.2 Socket

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

1 x PS/2 Mouse/Keyboard Port / 1 x D-Sub Port / 1 x HDMI Port / 2 x USB 2.0 Ports (Supports ESD Protection) / 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) / 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) / HD Audio Jacks: Line in / Front Speaker / Microphone
