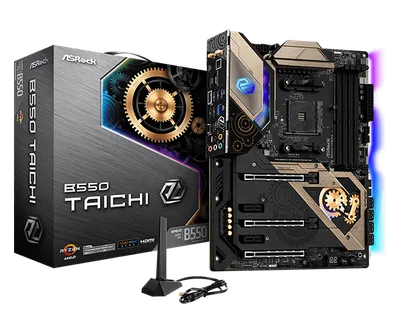

WiFi

WiFi 6

Chipset

AMD B550

M.2-platser

1

Ethernet

2.5 Gigabit

Max minne

128 GB

PCIe-platser

AMD Ryzen series CPUs (Vermeer and Matisse) / 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE3) / Gen3x4 (PCIE5))*AMD Ryzen series APUs (Cezanne and Renoir) / 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen3x4 (PCIE5))*AMD Ryzen series APUs (Picasso) / 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen3x8 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen3x4 (PCIE5))* / 2 x PCI Express 3.0 x1 Slots / Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX / 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O) / 15μ Gold Contact in VGA PCIe Slot (PCIE1)*If PCIE2 or PCIE4 is occupied, PCIE5 will downgrade to x2 mode.Supports NVMe SSD as boot disks

SATA-portar

4

Ljudkodek

Realtek ALC1220

Dimensioner

305 × 244mm

Formfaktor

ATX

Minnestyp

DDR4

Minnesplatser

4

Displayutgångar

Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* / DirectX 12, Pixel Shader 5.0 / Shared memory default 2GB. Max Shared memory supports up to 16GB.** / Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers / Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz / Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz / Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) / Supports HDR (High Dynamic Range) with HDMI 2.1 / Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports*** / Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports / Supports Microsoft PlayReady*Actual support may vary by CPU**The Max shared memory 16GB requires 32GB system memory installed.***Picasso supports HDCP 2.2 with HDMI 2.0 Port

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

BIOS

256Mb AMI UEFI Legal BIOS with GUI support / Supports "Plug and Play" / ACPI 5.1 compliance wake up events / Supports jumperfree / SMBIOS 2.3 support / CPU, CPU VDDCR_SOC, DRAM, VPPM, VTT_DDR Offset, CPU VDD 1.8 Voltage Multi-adjustment

Connector

1 x SPI TPM Header / 1 x Power LED and Speaker Header / 2 x RGB LED Headers* / 2 x Addressable LED Headers** / 1 x CPU Fan Connector (4-pin)*** / 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** / 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** / 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) / 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) / 1 x Front Panel Audio Connector (15μ Gold Audio Connector) / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) / 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) / 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)***** / 1 x Dr. Debug with LED / 1 x Power Button with LED / 1 x Reset Button with LED / 1 x Clear CMOS Button*Support in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.***CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.*****Front Panel Type C USB 3.2 Gen2 will downgrade to USB 3.2 Gen1 when Picasso APU is installed.

Accessories

4 x SATA Data Cables / 1 x ASRock WiFi 2.4/5 GHz Antenna / 1 x ASRock Screwdriver / 2 x Screws for M.2 Sockets / 2 x Standoffs for M.2 Sockets

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

2 x Antenna Ports / 1 x HDMI Port / 1 x DisplayPort 1.4 / 1 x Optical SPDIF Out Port / 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) / 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) / 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)* / 2 x USB 2.0 Ports (Supports ESD Protection) / 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) / 1 x Clear CMOS Button / 1 x BIOS Flashback Button / HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)*Ultra USB Power is supported on USB3_1_2 ports.ACPI wake-up function is not supported on USB3_1_2 ports.

Unique Feature

ASRock USB 3.2 Gen2 / ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) / ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) / ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy / XXL Aluminum Alloy Heatsink / Premium 60A Power Choke / 50A Dr.MOS / Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) / Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) / I/O Armor / Matte Black PCB / High Density Glass Fabric PCB / 2oz Copper PCBIntel 2.5G LANIntel 802.11ax WiFiASRock Steel Slot Gen4ASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4)ASRock Ultra USB PowerASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop

Hardware Monitor

Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans / Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans / Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans / Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans / Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, CPU VDD 1.8V

Software and UEFI

Software / ASRock Motherboard Utility (A-Tuning) / ASRock Polychrome SYNCUEFI / ASRock Full HD UEFI / ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop.
