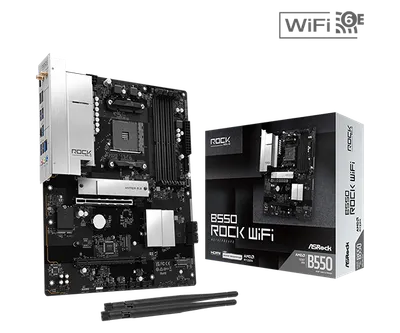

B550 Rock WiFi

WiFi

WiFi 6

Chipset

AMD B550

M.2-platser

1

Ethernet

2.5 Gigabit

Max minne

128 GB

PCIe-platser

AMD Ryzen series CPUs (Vermeer and Matisse) / 2 x PCIe x16 Slots (PCIE1: Gen4x16 mode; PCIE2: Gen3 x2 mode)*AMD Ryzen series APUs (Cezanne and Renoir) / 2 x PCIe x16 Slots (PCIE1: Gen3x16 mode; PCIE2: Gen3 x2 mode)*AMD Ryzen series APUs (Picasso) / 2 x PCIe x16 Slots (PCIE1: Gen3x8 mode; PCIE2: Gen3 x2 mode)* / 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*Supports NVMe SSD as boot disks

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

305 244 mm

Formfaktor

ATX

Minnestyp

DDR4

Minnesplatser

4

Displayutgångar

Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* (Actual support may vary by CPU) / 1 x HDMI 2.1, supports HDR, HDCP 2.3, 4K Ultra HD (UHD) playback and max. resolution up to 4K 60Hz**Picasso supports HDCP 2.2 with HDMI 2.0 Port

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

USB

CPU: / 1 x USB 3.2 Gen1 Type-C (Rear) / 3 x USB 3.2 Gen1 Type-A (3 Rear (USB32_12 and USB32_3))Chipset: / 1 x USB 3.2 Gen1 Type-C (Front) / 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_4), 2 Front) / 7 x USB 2.0 (3 Rear, 4 Front)*All USB ports support ESD Protection

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Connector

1 x SPI TPM Header / 1 x Power LED and Speaker Header / 1 x RGB LED Header* / 3 x Addressable LED Headers** / 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** / 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** / 1 x 24 pin ATX Power Connector / 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) / 1 x Front Panel Audio Connector / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) / 1 x USB 3.2 Gen1 Header (Support 2 USB 3.2 Gen1 ports) / 1 x Front Panel Type C USB 3.2 Gen1 Header*Supports in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***CPU_FAN1 supports the fan power up to 1A (12W).CPU_FAN2 and CHA_FAN1~4 support the fan power up to 3A (36W).CPU_FAN2 and CHA_FAN1~4 can auto detect if 3-pin or 4-pin fan is in use.

Accessories

2 x ASRock WiFi 2.4/5/6 GHz Antennas / 2 x SATA Data Cables

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

2 x Antenna Ports / 1 x HDMI Port / 1 x USB 3.2 Gen1 Type-C Port / 4 x USB 3.2 Gen1 Type-A Ports / 3 x USB 2.0 Ports / 1 x RJ-45 LAN Port / HD Audio Jacks: Line in / Front Speaker / Microphone
