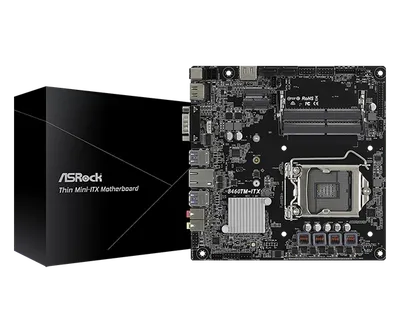

B460TM-ITX

Chipset

Intel B460

Ethernet

1 Gigabit

Max minne

64 GB

PCIe-platser

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

SATA-portar

2

Ljudkodek

Realtek ALC233

Dimensioner

170 170 mm

Formfaktor

Mini-ITX

Minnestyp

DDR4

Displayutgångar

Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1** / Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 / Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc / Three graphics output options: 2 x HDMI, 1 x LVDS ports / Supports 2 x HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz HDMI x 1 port (Rear) HDMI x 1 port (Internal) / Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) / Supports LVDS with max. resolution up to 1920x1080 @ 60Hz / Supports HDCP 2.3 with HDMI 1.4 Port / Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**VP9 10bit and VC-1 are for decode only.VP8 and VP9 encode are not supported by Windows OS.

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

BIOS

128Mb AMI UEFI Legal BIOS with GUI support / ACPI 6.0 Compliant wake up events / SMBIOS 2.7 Support

Connector

1 x Chassis Intrusion Header / 1 x Backlight inverter voltage selection header / 1 x FPD brightness header / 1 x Panel voltage selection header / 1 x LVDS Connector / 2 x CPU Fan Connectors (4-pin)* / 1 x 4 pin 19V Power Connector (2-Pin) / 1 x Thermal Sensor Header / 1 x Front Panel Audio Connector / 1 x Internal Speaker Header (4-Pin) / 2 x SATA Power Connectors / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)*The CPU Fan Connectors support the CPU fan of maximum 1A (12W) fan power.

Accessories

Quick Installation Guide (optional) / I/O Shield (optional) / 1 x SATA Data Cable (optional) / 1 x SATA Power Cable (optional) / 2 x Screws for M.2 Sockets

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

1 x DC Jack (Compatible with the 19V power adapter) / 1 x Serial Port: COM / 2 x HDMI Ports: HDMI1 (Rear), HDMI2 (Internal) / 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) / 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) / HD Audio Jacks: Line out / Microphone

Unique Feature

ASRock Super Alloy / Matte Black PCB / High Density Glass Fabric PCBASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

Hardware Monitor
