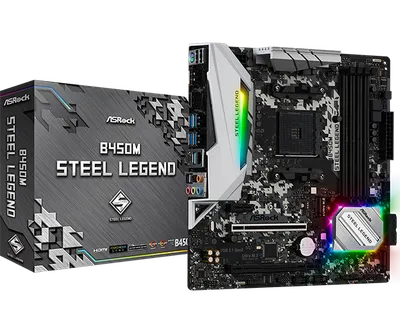

B450M Steel Legend

Chipset

AMD Promontory B450

M.2-platser

2

Ethernet

1 Gigabit

Max minne

128 GB

PCIe-platser

AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge) / 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* / 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)AMD Ryzen series CPUs (Picasso, Raven Ridge) / 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) (If you use Athlon 2xxGE series APU, PCIE2 slot will run at x4 mode.) / 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)AMD Athlon series CPUs / 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)* / 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) / 1 x PCI Express 2.0 x1 Slot / Supports AMD Quad CrossFireX and CrossFireX*Supports NVMe SSD as boot disks

SATA-portar

4

Ljudkodek

Realtek ALC892

Dimensioner

244 244 mm

Formfaktor

Micro ATX

Minnestyp

DDR4

Minnesplatser

4

Displayutgångar

Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* / DirectX 12, Pixel Shader 5.0 / Shared memory default 2GB. Max Shared memory supports up to 16GB.** / Dual graphics output: Support HDMI and DisplayPort 1.2 ports by independent display controllers / Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz / Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz / Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) / Supports HDCP 1.4 with HDMI 1.4 and DisplayPort 1.2 Ports / Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports*Actual support may vary by CPU**The Max shared memory 16GB requires 32GB system memory installed.

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit**Summit Ridge do not officially support Windows 11.

BIOS

128Mb AMI UEFI Legal BIOS with multilingual GUI support / Supports "Plug and Play" / ACPI 5.1 compliance wake up events / Supports jumperfree / SMBIOS 2.3 support / DRAM Voltage multi-adjustment

Connector

1 x COM Port Header / 1 x TPM Header / 1 x Chassis Intrusion Header / 1 x Power LED and Speaker Header / 1 x RGB LED Header* / 1 x Addressable LED Header** / 1 x AMD Fan LED Header*** / 1 x CPU Fan Connector (4-pin)**** / 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** / 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** / 1 x 24 pin ATX Power Connector / 1 x 8 pin 12V Power Connector / 1 x Front Panel Audio Connector / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) / 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)*Supports in total up to 12V/3A, 36W LED Strip**Supports in total up to 5V/3A, 15W LED Strip***The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.*****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

Accessories

I/O Shield / 2 x SATA Data Cables / 2 x Screws for M.2 Sockets

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O

1 x PS/2 Mouse/Keyboard Port / 1 x HDMI Port / 1 x DisplayPort 1.2 / 1 x Optical SPDIF Out Port / 2 x USB 2.0 Ports (Supports ESD Protection) / 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) / 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) / 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) / 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) / HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
