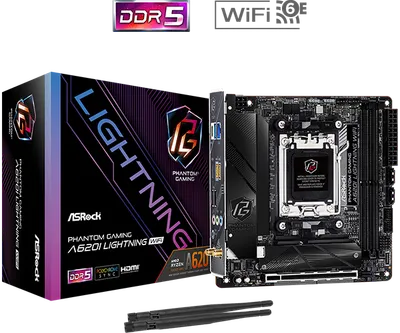

A620I Lightning WiFi

WiFi

WiFi 6

Sockel

AM5

Chipset

AMD A620

M.2-platser

1

Ethernet

2.5 Gigabit

Max minne

128 GB

PCIe-platser

CPU: / 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*Chipset: / 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module* / 15μ Gold Contact in VGA PCIe Slot (PCIE1)* Supports NVMe SSD as boot disks

SATA-portar

2

Ljudkodek

Realtek ALC897

Dimensioner

170 170 mm

Formfaktor

Mini-ITX

Minnestyp

DDR5

Minnesplatser

2

Displayutgångar

Integrated AMD RDNA graphics (Actual support may vary by CPU) / 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

Max minneshastighet

7200 MHz

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

USB

1 x USB 3.2 Gen2 Type-C (Rear) / 2 x USB 3.2 Gen2 Type-A (Rear) / 1 x USB 3.2 Gen1 Type-A (Rear) / 1 x USB 3.2 Gen1 Type-C (Front) / 2 x USB 3.2 Gen1 Type-A (Front) / 4 x USB 2.0 (2 Rear, 2 Front)* All USB ports support ESD Protection

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

RAID

Supports RAID 0 and RAID 1 for SATA storage devices / Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices** Requires additional M.2 NVMe expansion cards to support RAID 10

Connector

2 x Addressable LED Headers* / 2 x CPU/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** / 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** / 1 x 24 pin ATX Power Connector / 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) / 1 x Front Panel Audio Connector / 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) / 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) / 1 x Front Panel Type C USB 3.2 Gen1 Header*Support in total up to 5V/3A, 15W LED Strip** CPU_FAN1/WP and CPU_FAN2/WP support the fan power up to 2A (24W).*** CHA_FAN1/WP supports the fan power up to 2A (24W).CPU_FAN1/WP, CPU_FAN2/WP and CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

Accessories

1 x User Manual / 2 x SATA Data Cables / 2 x ASRock WiFi 2.4/5/6 GHz Antennas / 1 x Screw for M.2 Socket

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O
