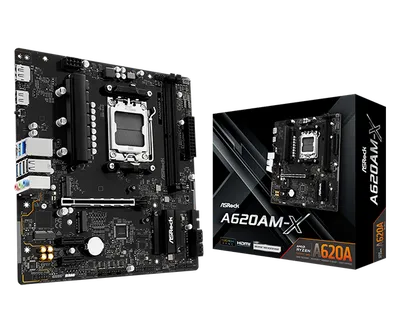

A620AM-X

Sockel

AM5

Chipset

AMD A620A

M.2-platser

2

Ethernet

2.5 Gigabit

Max minne

128 GB

PCIe-platser

CPU: / 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*Chipset: / 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* / 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module / 15μ Gold Contact in VGA PCIe Slot (PCIE1)* Supports NVMe SSD as boot disks

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

244 226 mm

Formfaktor

Micro ATX

Minnestyp

DDR5

Minnesplatser

2

Displayutgångar

Integrated AMD RDNA graphics (Actual support may vary by CPU) / 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz / 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Max minneshastighet

8000 MHz

Övriga specifikationer

OS

Microsoft Windows 10 64-bit / 11 64-bit

USB

CPU: / 3 x USB 3.2 Gen1 Type-A (Rear) Chipset: / 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) / 2 x USB 3.2 Gen1 Type-A (Front) / 6 x USB 2.0 (2 Rear, 4 Front)* All USB ports support ESD Protection

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices / Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices** Requires additional M.2 NVMe expansion cards to support RAID 10

Connector

1 x SPI TPM Header / 1 x Power LED and Speaker Header / 1 x RGB LED Header* / 3 x Addressable LED Headers** / 1 x CPU Fan Connector (4-pin)*** / 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** / 1 x 24 pin ATX Power Connector / 1 x 8 pin 12V Power Connector / 1 x Front Panel Audio Connector / 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) / 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) / 1 x Front Panel Type C USB 3.2 Gen1 Header* Supports in total up to 12V/3A, 36W LED Strip** Support in total up to 5V/3A, 15W LED Strip*** CPU_FAN1 supports the fan power up to 1A (12W).**** CHA_FAN1~3/WP support the fan power up to 2A (24W). CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

Accessories

1 x User Manual / 1 x I/O Shield / 2 x SATA Data Cables / 3 x Screws for M.2 Sockets

Certifications

FCC, CE / ErP/EuP ready (ErP/EuP ready power supply is required)

Rear Panel I/O
