RGB

ARGB

Typ

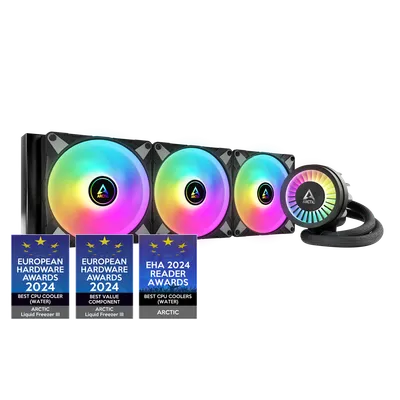

AIO 420mm

Vikt

2.325 kg

Luftflöde

117.06 m3/h

Fläktstorlek

140 mm

Antal fläktar

3

Fläktmodell

3x P14 PWM PST A-RGB

Fläkthastighet

200-1900 RPM

Material

Aluminium, Copper, Micro Skived Fins

Garanti

6 Years

Pumphastighet

800-2800 RPM

Dimensioner

458 L x 138 W x 38 H mm

Slanglängd

450 mm

Lagertyp

Fluid Dynamic Bearing

Radiatorstorlek

420 mm

Pumpkontakt

4-Pin PWM Connector

Statiskt tryck

2 mmH2O

Sockelkompatibilitet

1851, 1700, AM5, AM4

Övriga specifikationer

TIM

MX-6 (0.8 g)

PI | NNPI

420 | 376

LED Connector

3-Pin A-RGB Connector

Splitt Connector

3x 4-Pin PWM Connector

Fan Specifications: LEDs

12x A-RGB LEDs

Fan Specifications: Connector

4-Pin PWM Connector | 3-Pin A-RGB Connector + 3-Pin Plug

Operating Ambient Temperature

0-40 °C

VRM Module Specifications: LEDs

12x A-RGB LEDs

Fan Specifications: Cable Lenght

40 mm | 40 mm + 80 mm Splitter Cable

Pump Specifications: Tube Diameter

Outer: 12.4 mm

VRM Module Specifications: VRM Fan

400-2500 rpm (PWM controlled)

Fan Specifications: Current | Voltage

0.17 A | 12 V DC | 0.40 V | 5 V DC

Pump Specifications: Current | Voltage

0.35 A | 12 V DC

VRM Module Specifications: Current | Voltage

0.05 A | 12 V DC | 0.40 A | 5 V DC
