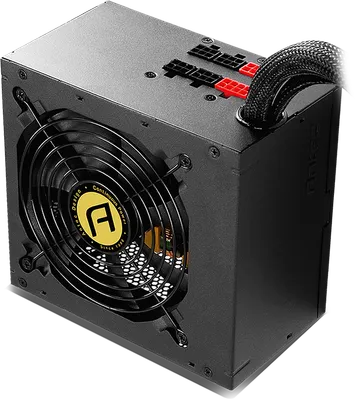

Neo ECO MODULAR 550 v2

Vikt

2.2 kg

Fläktstorlek

120 mm

Modulär

Semi

Effekt

550 W

Garanti

5 years

ATX-version

ATX 12

Effektivitet

80+ Bronze

Formfaktor

ATX

Skydd

OCP / OVP / UVP / SCP / OPP / NLO

EPS-kontakter

1

SATA-kontakter

5

PCIe 8-pin-kontakter

2

Övriga specifikationer

PFC

Active PFC

UPC#

[NE550M V2 GB][0-761345-10573-6] | [NE550M V2 ][0-761345-10587-3] | [NE550M V2 ][0-761345-11167-6]

Model

NE550M V2

Dimension

140(L) x 150(W) x 86(H)

Efficiency

Up to 88%

Regulatory

cTUVus / TUV / CB[IEC62368 Compliant] / RCM / | CE / CCC / BSMI / FCC

Gross Weight

2.33 Kgs

Input Current

8A-4A

Input Voltage

100-240 VAC

Power Good Signal

100-500ms

Input Frequency Range

47Hz-63Hz

Operation Temperature

0-40°C
